UELS306 Series-

Designations

UELS306

Included products

Bearing

UELS306

Bearing

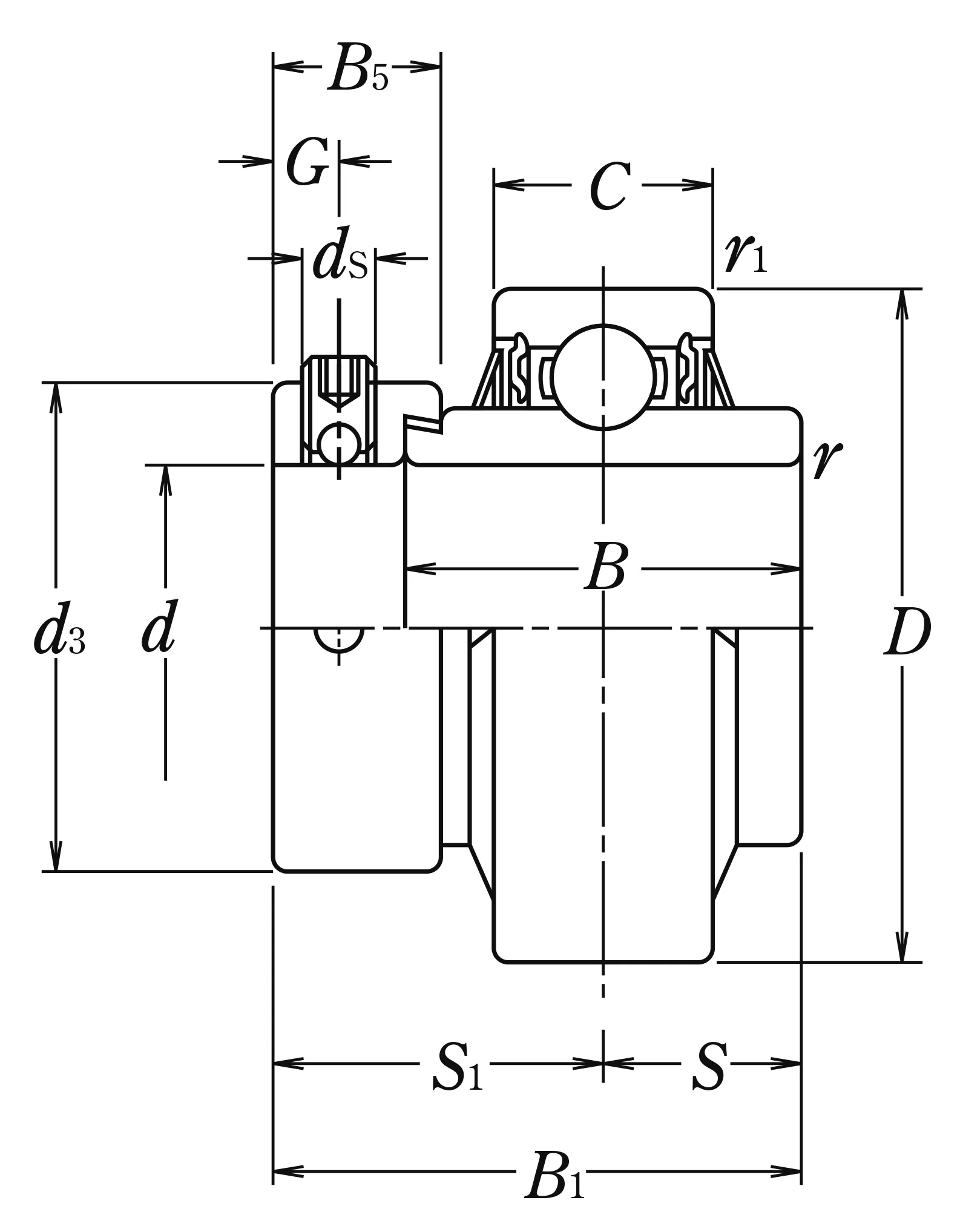

Nominal Dimensions

d	30	mm	Bore diameter
D	72	mm	Outside diameter
B1	50	mm	Overall bearing width
B,B4	36.5	mm	Width of inner ring
C	23	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
r1(min.)	1	mm	Chamfer dimension
S1	32.5	mm	Distance from locking device side face to raceway centre
G	6.7	mm	Distance face to thread centre
ds	M 8×1		Set screw
d3	50	mm	Outside diameter of locking collar
B5	17.5	mm	Width of locking collar

Basic Load Ratings

Cr	26.7	kN	Basic dynamic load rating
C0r	15	kN	Basic static load rating

Mass

Mass approx.

0.71

kg

Mass approx.
