UEL306D1 Series-

Designations

UEL306D1

Included products

Bearing

UEL306D1

Bearing

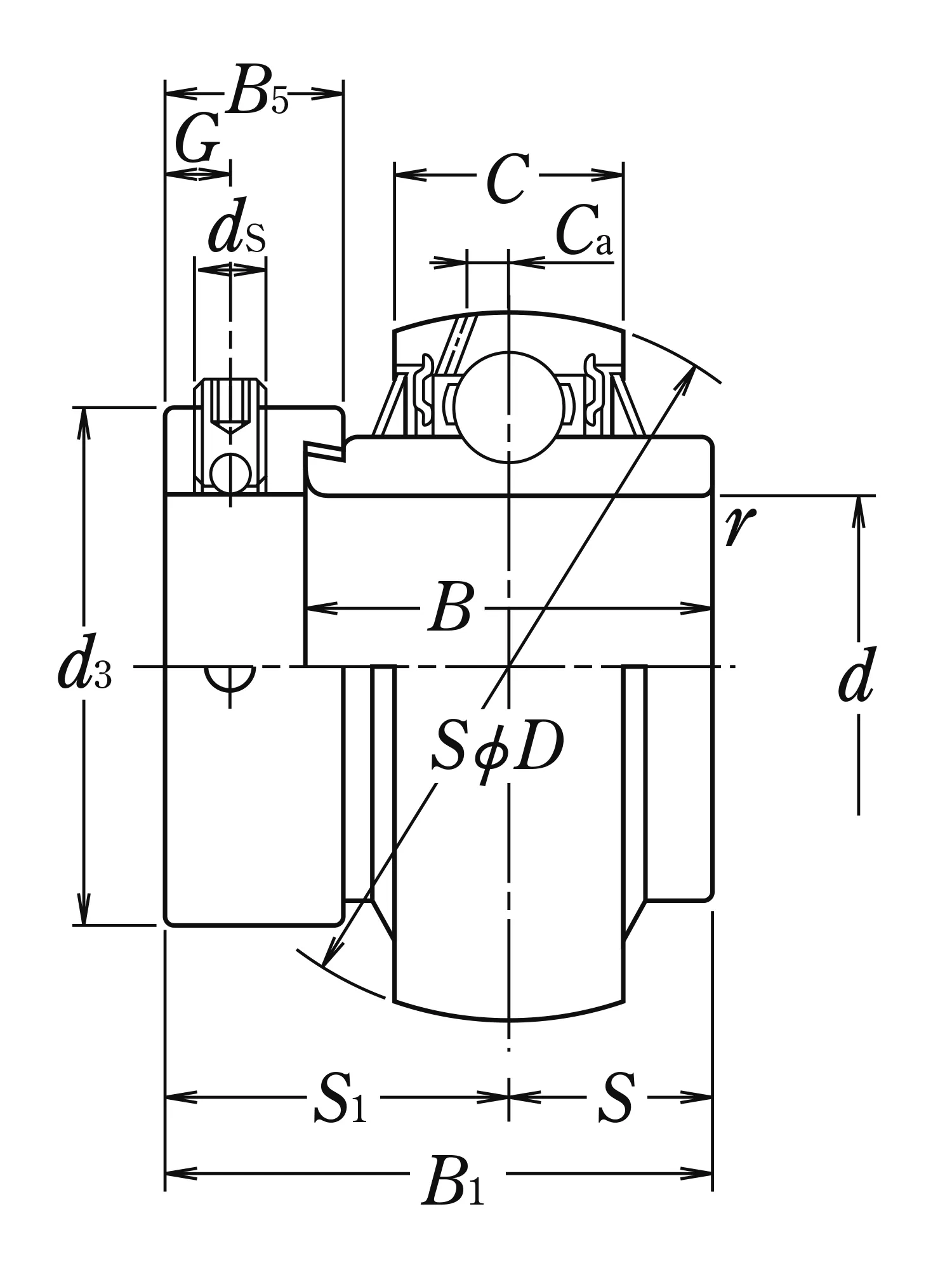

Nominal Dimensions

d	30	mm	Bore diameter
D	72	mm	Outside diameter
B1	50	mm	Overall bearing width
B,B4	36.5	mm	Width of inner ring
C	23	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
S1	32.5	mm	Distance from locking device side face to raceway centre
G	6.7	mm	Distance face to thread centre
ds	M 8×1		Set screw
Ca	5.6	mm	Distance from oil hole centre to raceway centre
d3	50	mm	Outside diameter of locking collar
B5	17.5	mm	Width of locking collar

Basic Load Ratings

Cr	26.7	kN	Basic dynamic load rating
C0r	15	kN	Basic static load rating

Mass

Mass approx.

0.69

kg

Mass approx.
