AEL206 Series-

Designations

AEL206

Included products

Bearing

AEL206

Bearing

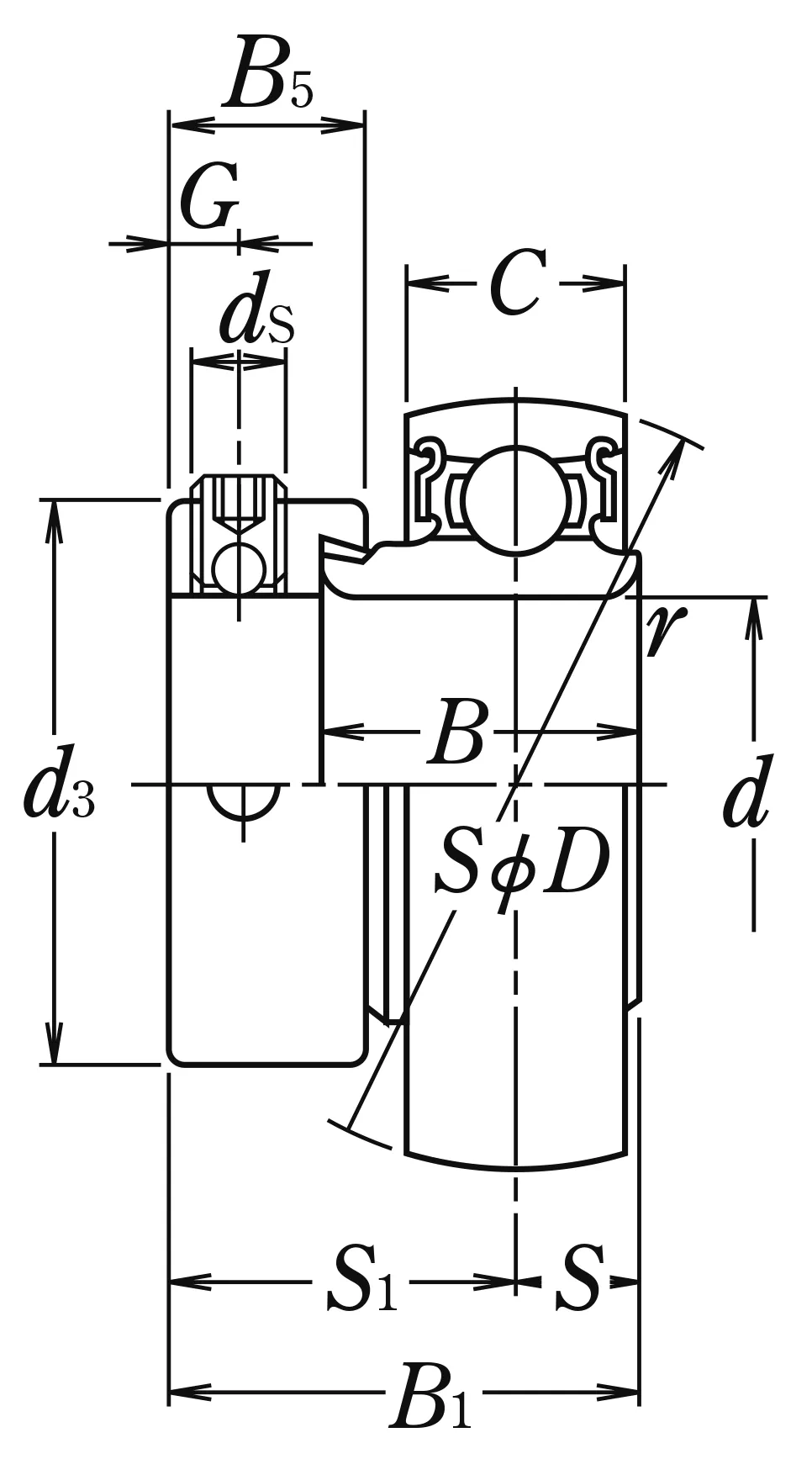

Nominal Dimensions

d	30	mm	Bore diameter
D	62	mm	Outside diameter
B1	35.7	mm	Overall bearing width
B,B4	23.8	mm	Width of inner ring
C	16	mm	Outer ring width
r(min.)	1	mm	Chamfer dimension
S1	26.7	mm	Distance from locking device side face to raceway centre
G	6	mm	Distance face to thread centre
ds	M 8×1		Set screw
d3	44.5	mm	Outside diameter of locking collar
B5	15.9	mm	Width of locking collar

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

Mass approx.

0.31

kg

Mass approx.
