CS206LLU Series
CS206LLU Series

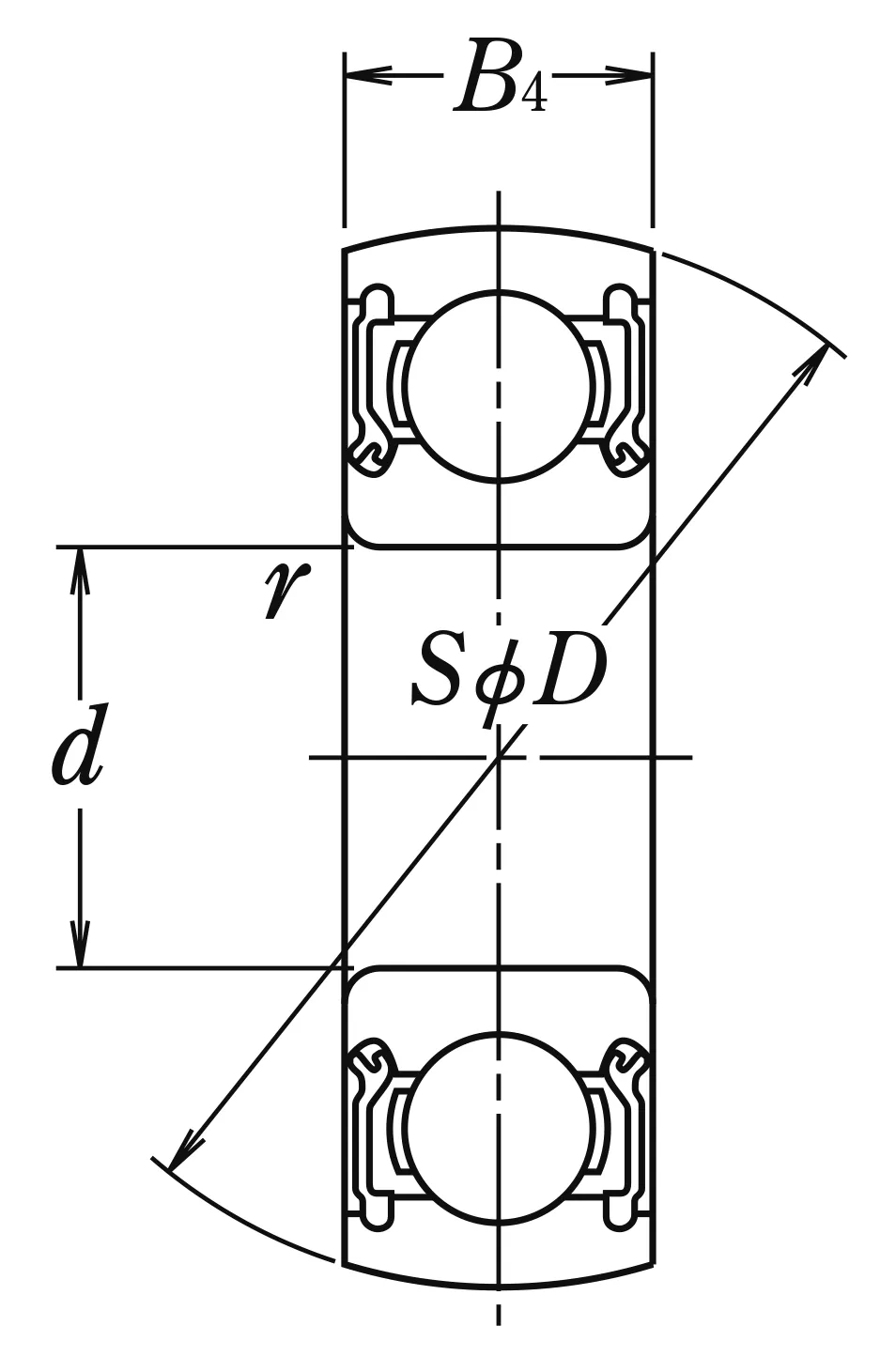

| CS206LLU |
| Bearing | CS206LLU | Bearing |
| d | 30 | mm | Bore diameter |
| D | 62 | mm | Outside diameter |
| B,B4 | 16 | mm | Width of inner ring |
| r(min.) | 1 | mm | Chamfer dimension |
| Cr | 19.5 | kN | Basic dynamic load rating |
| C0r | 11.3 | kN | Basic static load rating |
| Mass approx. | 0.2 | kg | Mass approx. |
