AS205 Series-

Designations

AS205

Included products

Bearing

AS205

Bearing

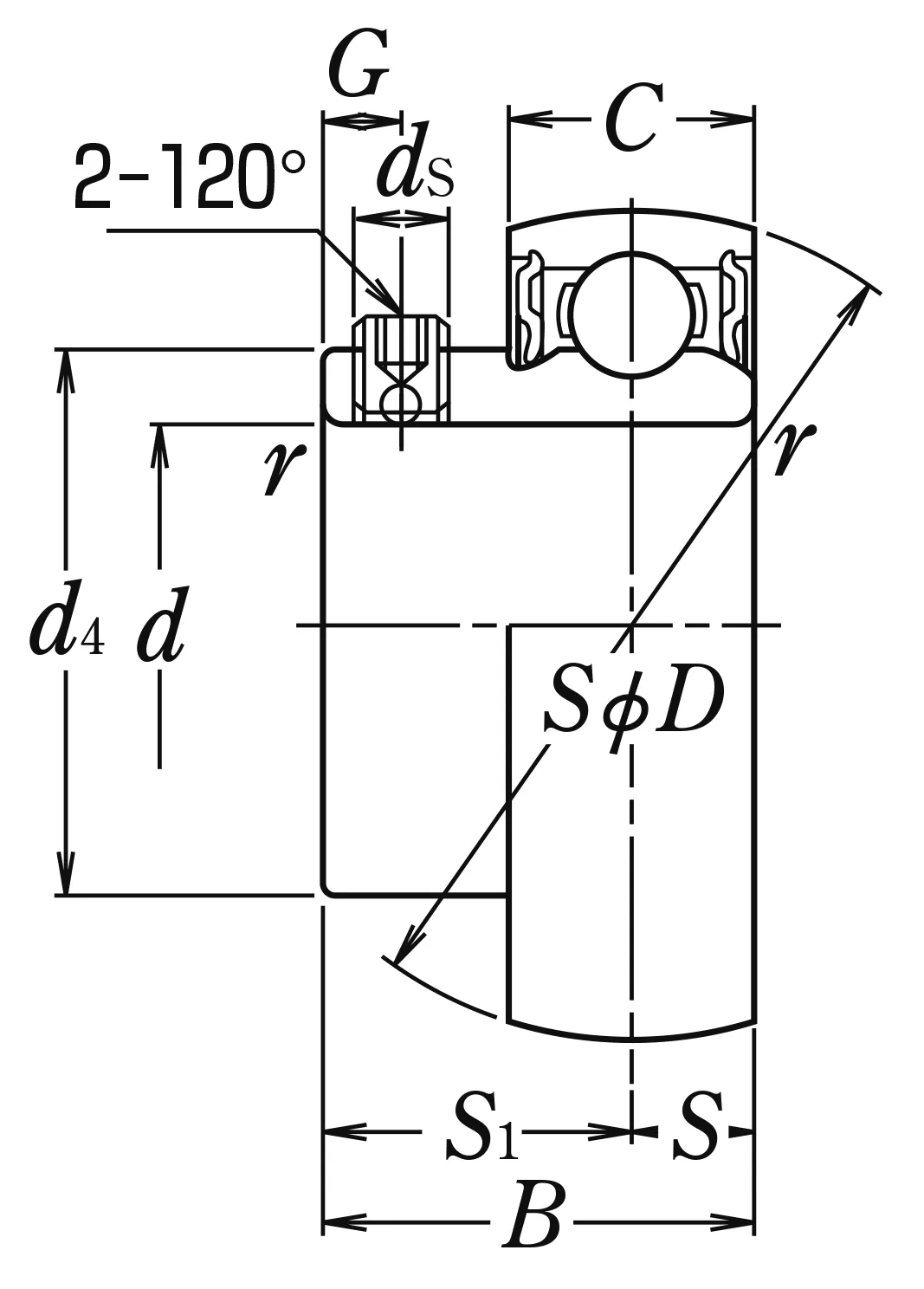

Nominal Dimensions

d	25	mm	Bore diameter
D	52	mm	Outside diameter
B,B4	27	mm	Width of inner ring
C	15	mm	Outer ring width
r(min.)	1	mm	Chamfer dimension
S1	19.5	mm	Distance from locking device side face to raceway centre
G	5	mm	Distance face to thread centre
ds	M5×0.8		Set screw
d4	33.9	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

Mass approx.

0.16

kg

Mass approx.
