UKS205LN Series-

Designations

UKS205LN

Included products

Bearing

UKS205LN

Bearing

Associated products

Adapter sleeve

H2305X

Adapter sleeve

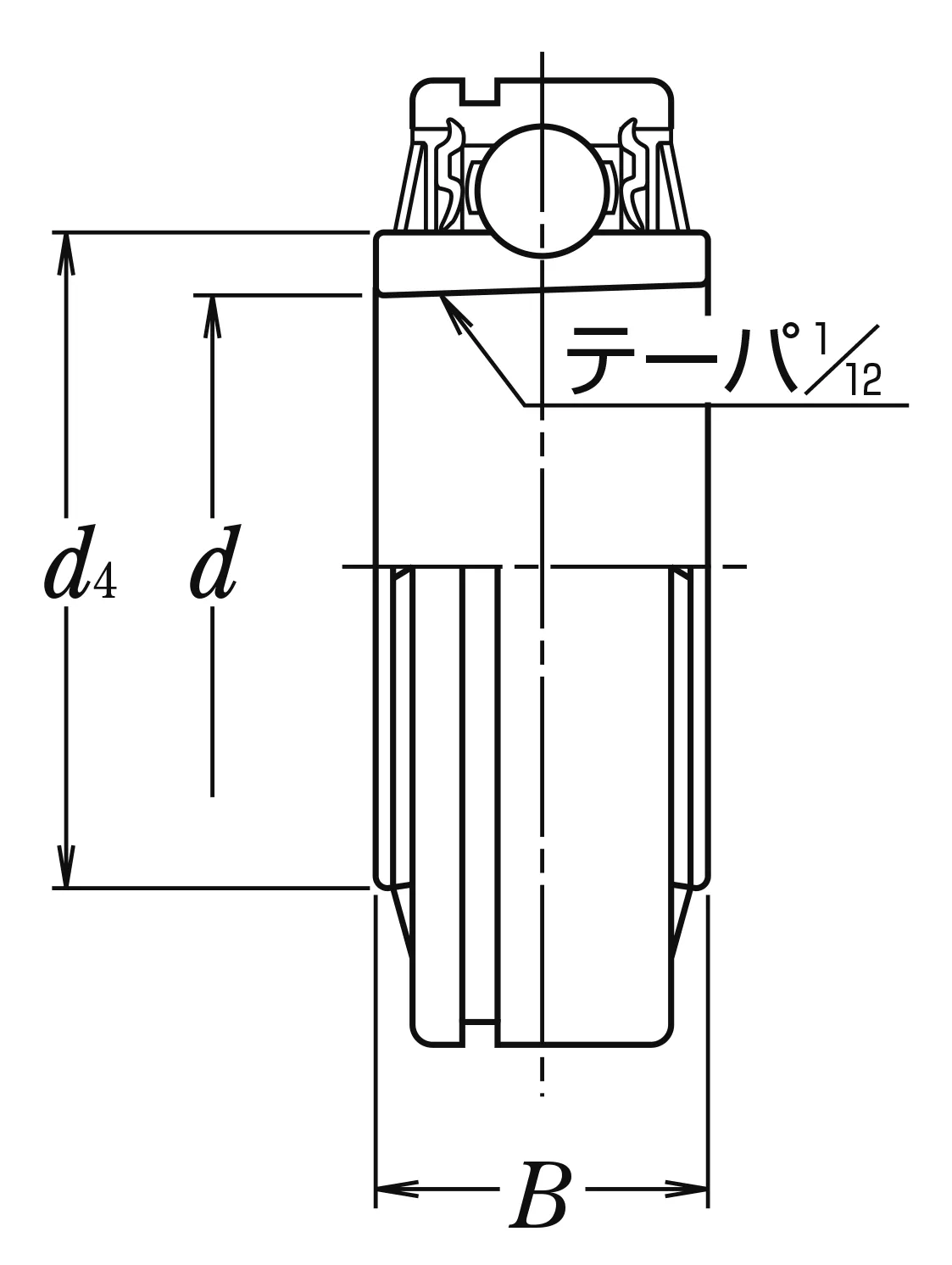

Nominal Dimensions

d	25	mm	Bore diameter
D	52	mm	Outside diameter
B1	35	mm	Overall bearing width
d1	20	mm	Sleeve bore diameter
d2	38	mm	Outside diameter lock nut
B,B4	23	mm	Width of inner ring
B2	8	mm	Width lock nut including lock washer
C	17	mm	Outer ring width
r(min.)	0.6	mm	Chamfer dimension
d4	33.9	mm	Outside diameter of inner ring
D1	49.73	mm	Diameter of snap ring groove
a	3.2	mm	Distance outer ring from side face to snap ring groove
b	1.5	mm	Width of snap ring groove

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

Mass approx.

0.25

kg

Mass approx.
