UEL204D1 Series-

Designations

UEL204D1

Included products

Bearing

UEL204D1

Bearing

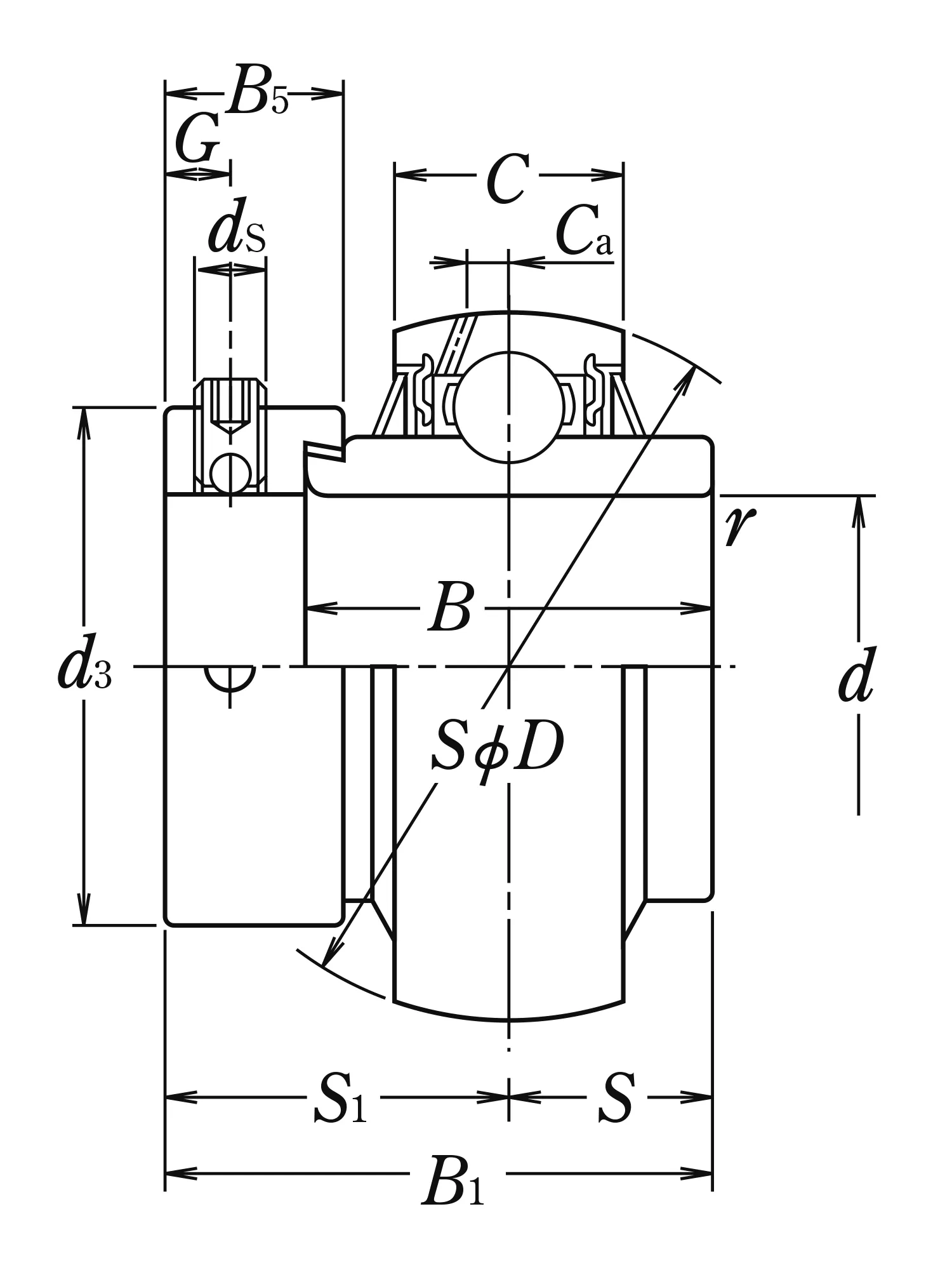

Nominal Dimensions

d	20	mm	Bore diameter
D	47	mm	Outside diameter
B1	43.7	mm	Overall bearing width
B,B4	34.2	mm	Width of inner ring
C	17	mm	Outer ring width
r(min.)	1	mm	Chamfer dimension
S1	26.6	mm	Distance from locking device side face to raceway centre
G	4.8	mm	Distance face to thread centre
ds	M 6×0.75		Set screw
Ca	3.8	mm	Distance from oil hole centre to raceway centre
d3	33	mm	Outside diameter of locking collar
B5	13.5	mm	Width of locking collar

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

Mass approx.

0.23

kg

Mass approx.
