F-UC204D1/LP99 Series-

Designations

F-UC204D1/LP99

Included products

Bearing

F-UC204D1/LP99

Bearing

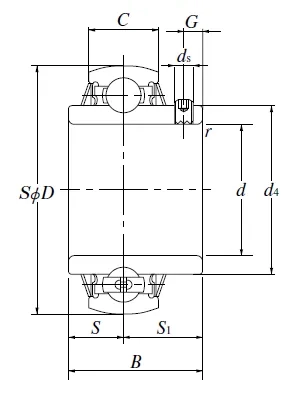

Nominal Dimensions

d	20	mm	Bore diameter
D	47	mm	Outside diameter
B,B4	31	mm	Width of inner ring
C	17	mm	Outer ring width
r(min.)	1	mm	Chamfer dimension
S1	18.3	mm	Distance from locking device side face to raceway centre
G	4.5	mm	Distance face to thread centre
ds	M5×0.8		Set screw
d4	29.6	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	9.9	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

Mass approx.

0.17

kg

Mass approx.
