CS202LLU Series
CS202LLU Series

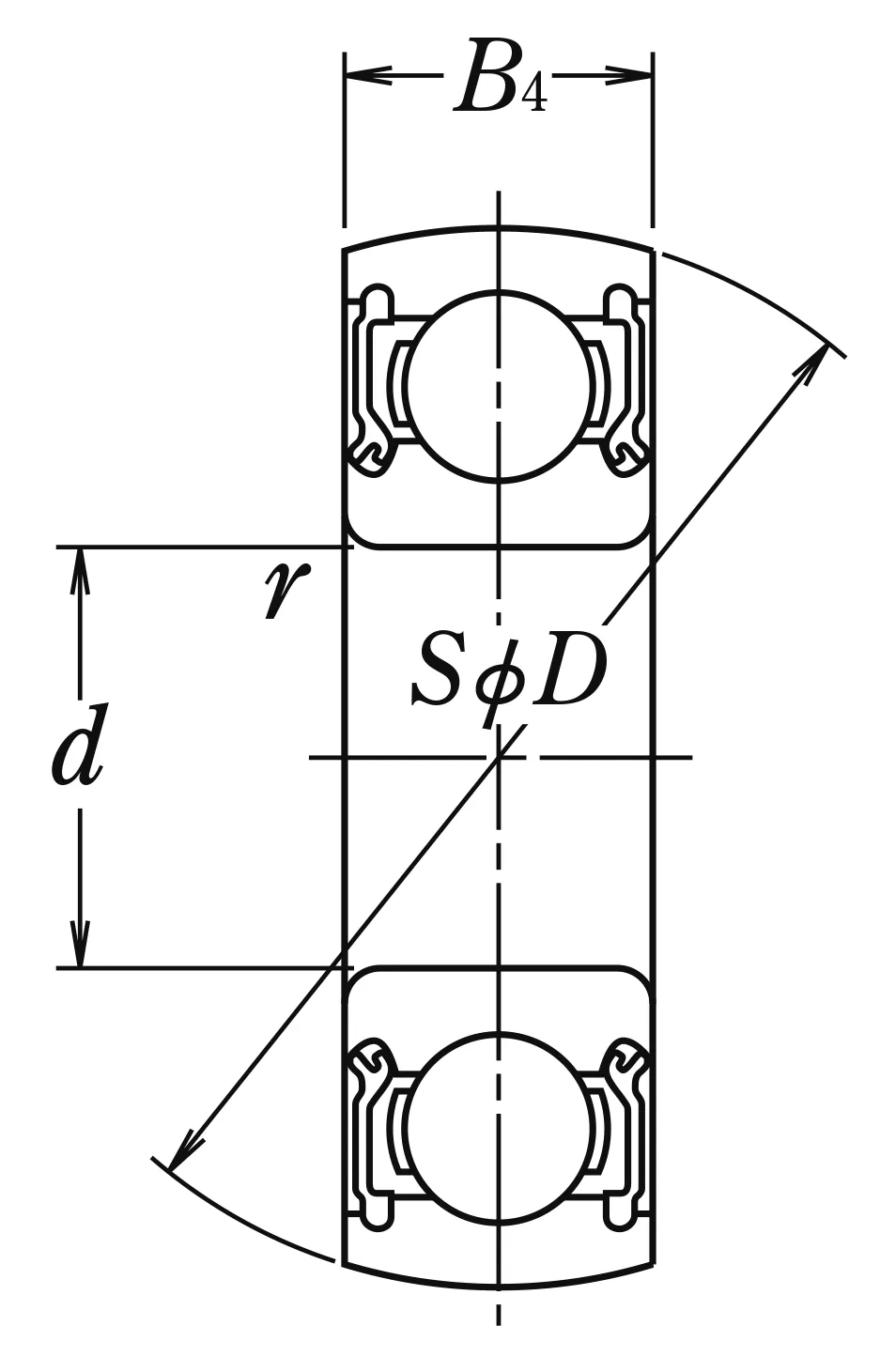

| CS202LLU |
| Bearing | CS202LLU | Bearing |
| d | 15 | mm | Bore diameter |
| D | 35 | mm | Outside diameter |
| B,B4 | 11 | mm | Width of inner ring |
| r(min.) | 0.6 | mm | Chamfer dimension |
| Cr | 7.75 | kN | Basic dynamic load rating |
| C0r | 3.6 | kN | Basic static load rating |
| Mass approx. | 0.04 | kg | Mass approx. |
