Time：2025-10-23
Edit：JFU Bearing

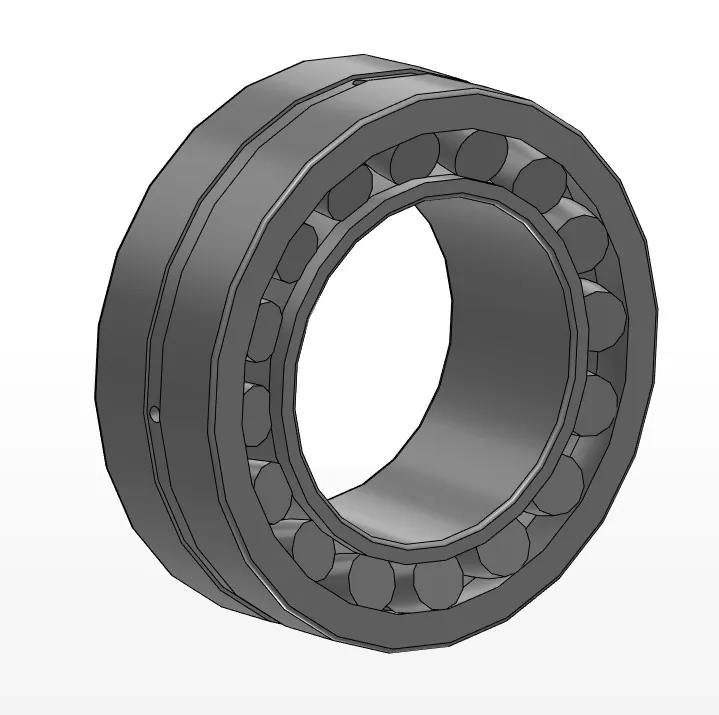

22308EAKE4
22308EAKE4
| ORDER Bearing No. |
22308EAKE4 | |
| SD Inside Diameter |
40 | mm |
| D Outside Diameter |
90 | mm |
| B Width |
33 | mm |
| R Chamfer Dimension |
1.5 | mm |
| CR1 Basic Dynamic Load Ratings |
170000 | N |
| COR1 Basic Static Load Ratings |
153000 | N |
| LT Thermal rated speed /Allowable maximum speed |
5600 | rpm |
| LM Mechanical limit speed /Allowable maximum speed |
9000 | rpm |
| LG Limiting Speed Grease |
5300 | rpm |
| LO Limiting Speed Oil |
6700 | rpm |
| DA1 Abutment and Fillet Dimensions min. |
49 | mm |
| DA2 Abutment and Fillet Dimensions max. |
52 | mm |
| DA3 Abutment and Fillet Dimensions max. |
81 | mm |
| DA4 Abutment and Fillet Dimensions min. |
77 | mm |
| RA Abutment and Fillet Dimensions min. |
1.5 | mm |
| E Constant |
0.35 | |
| Y2 Axial load factors |
2.8 | |
| Y3 Axial load factors |
1.9 | |
| Y0 Axial load factors |
1.9 | |
| MASS Mass |
0.98 | kg |
