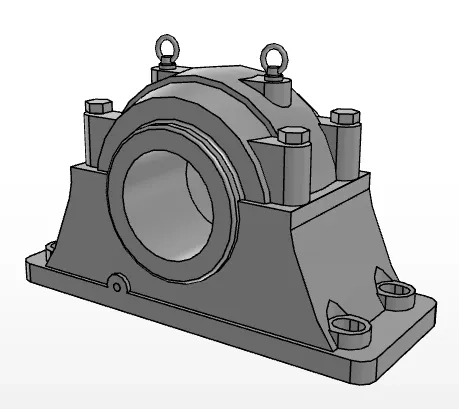

SD 348C
SD 348C

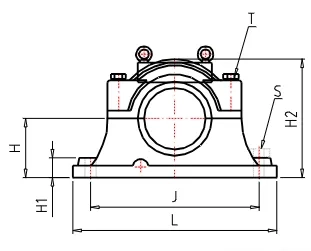

| Model | SD 348C | |
| D3 Shaft Diameter |
240 | mm |
| PLB Plummer Block Bearing Box Numbers |
SD 348C | |
| AN Spherical Roller Bearing - Numbers |
22348 CA | |
| NUT Nut Numbers |
AN 48 | |
| WA Washer Numbers |
AL 44 | |
| D1 Shaft Diameter |
260 | mm |
| D2 Shaft Diameter |
230 | mm |
| DH8 Diameter |
500 | mm |
| HH13 Height |
300 | mm |
| J Length |
830 | mm |
| J1 Length |
230 | mm |
| N Length |
50 | mm |
| N1 Length |
67 | mm |
| A Length |
390 | mm |
| L Length |
990 | mm |
| A1 Width |
380 | mm |
| H1 Height |
100 | mm |
| H2 Height |
590 | mm |
| G Width |
165 | mm |
| G1 Width |
155 | mm |
| T Nominal Diameter of Screw |
M36 | mm |
| S Nominal Diameter of Screw |
M42 | mm |
| MASS Mass-Approx. |
405 | kg |
| Y Length |
116 | mm |
| OSD1 Oil Seals Side D1 |
GS 56 | |
| OSD2 Oil Seals Side D2 |
GS 36 |
