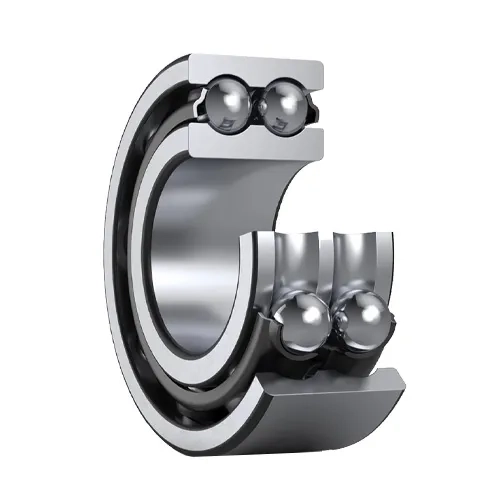

7300ADT
7300ADT
|
ORDER
Bearing No.
|
7300ADT | |||
|
SD
Inside Diameter
|
10 | mm | ||
|
D
Outside Diameter
|
35 | mm | ||
|
B
Width
|
11 | mm | ||
|
R
Chamfer Dimension
|
0.6 | mm | ||
|
R1
Chamfer Dimension
|
0.3 | mm | ||
|
CR1
Basic Dynamic Load Ratings
|
15100 | N | ||
|
COR1
Basic Static Load Ratings
|
8600 | N | ||
|
CR2
Basic Dynamic Load Ratings
|
1540 | kgf | ||
|
COR2
Basic Static Load Ratings
|
880 | kgf | ||
|
FO
Factors
|
0 | |||
|
LG
Limiting Speed Grease
|
16000 | rpm | ||
|
LO
Limiting Speed Oil
|
22000 | rpm | ||
|
A
Eff. Load center
|
0 | mm | ||
|
DA1
Abutment and Fillet Dimensions min.
|
15 | mm | ||
|
DA2
Abutment and Fillet Dimensions max.
|
30 | mm | ||
|
RA
Abutment and Fillet Dimensions max.
|
0.6 | mm |
