UCFS324D1-

Designations

UCFS324D1

Included products

Bearing	UC324D1		Bearing
Housing	FS324D1		Housing

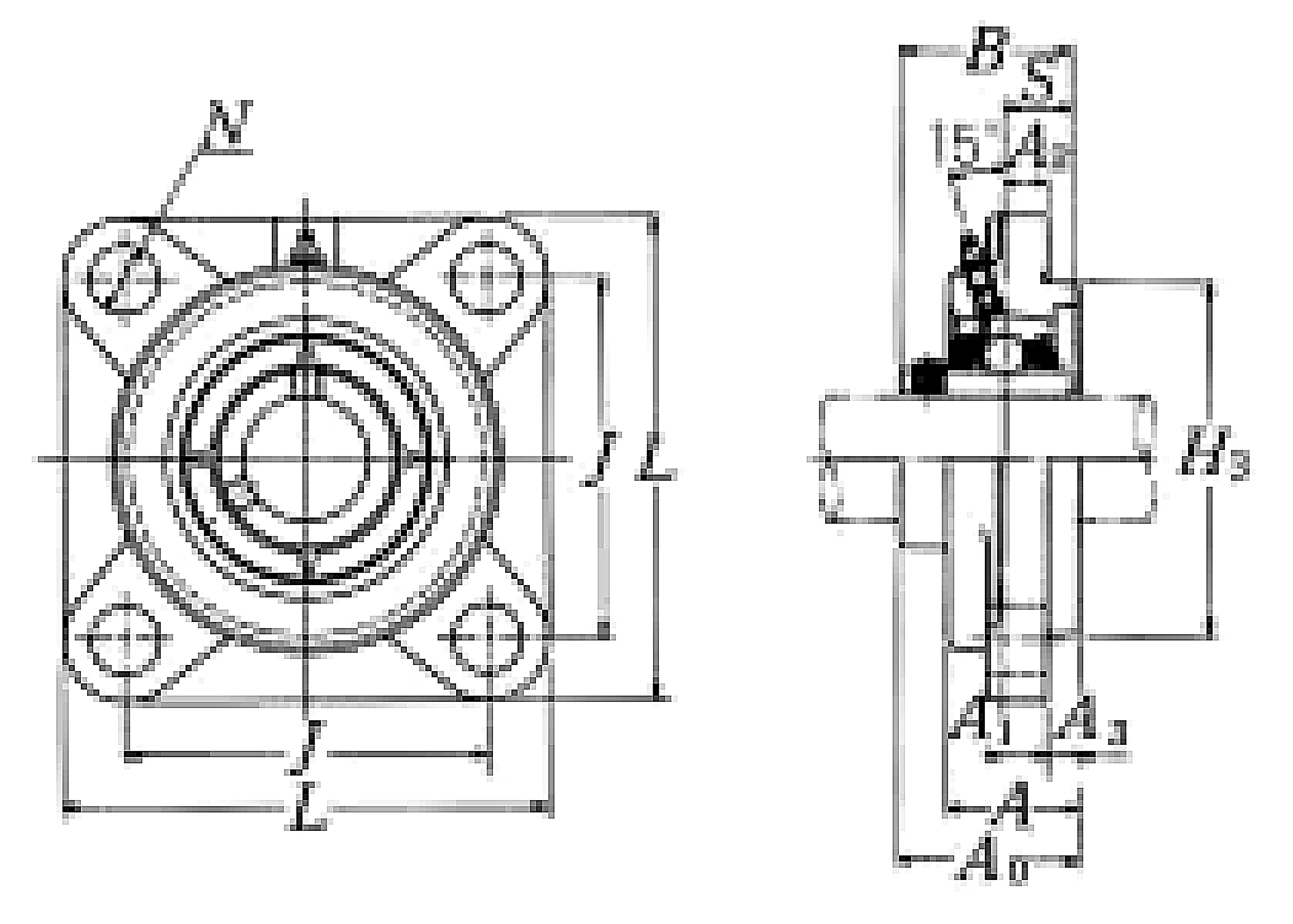

Nominal Dimensions

d	120	mm	Bore diameter
L	370	mm	Overall length
H3	330	mm	Outer diameter of Spigot Joint
J	290	mm	Distance between attachment bolts
A3	30	mm	Height of of Spigot Joint
A2	35	mm	Flange width
A1	40	mm	Flange width
A	110	mm	Base width
A0	140	mm	Overall width
B,B1,B2	126	mm	Width of inner ring
S	51	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M36

Bolt size

Basic Load Ratings

Cr	207	kN	Basic dynamic load rating
C0r	185	kN	Basic static load rating

Mass

mass

52

kg

Mass approx.
