C-UKFS326D1-

Designations

C-UKFS326D1

Included products

Bearing	UK326D1		Bearing
Housing	FS326D1		Housing

Associated products

Adapter sleeve

H2326

Adapter sleeve

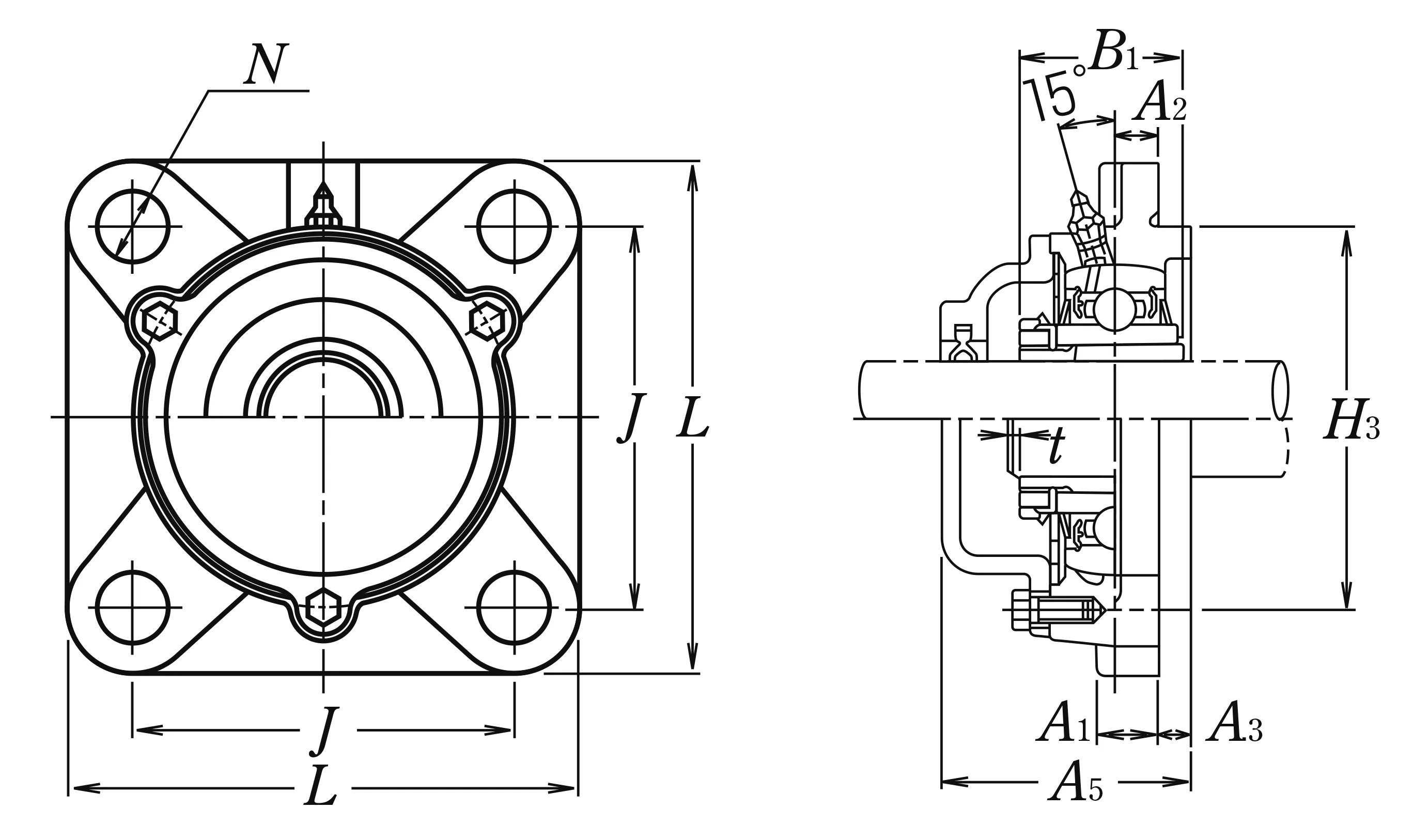

Nominal Dimensions

d	115	mm	Bore diameter
L	410	mm	Overall length
H3	360	mm	Outer diameter of Spigot Joint
J	320	mm	Distance between attachment bolts
A3	30	mm	Height of of Spigot Joint
A2	35	mm	Flange width
A1	45	mm	Flange width
A5	178	mm	Width including end cover
B,B1,B2	121	mm	Width of inner ring
t	6	mm	Clearance

Mounting information

G

M36

Bolt size

Basic Load Ratings

Cr	229	kN	Basic dynamic load rating
C0r	214	kN	Basic static load rating

Mass

mass

79

kg

Mass approx.
