CM-UKFS324D1-

Designations

CM-UKFS324D1

Included products

Bearing	UK324D1		Bearing
Housing	FS324D1		Housing

Associated products

Adapter sleeve

H2324

Adapter sleeve

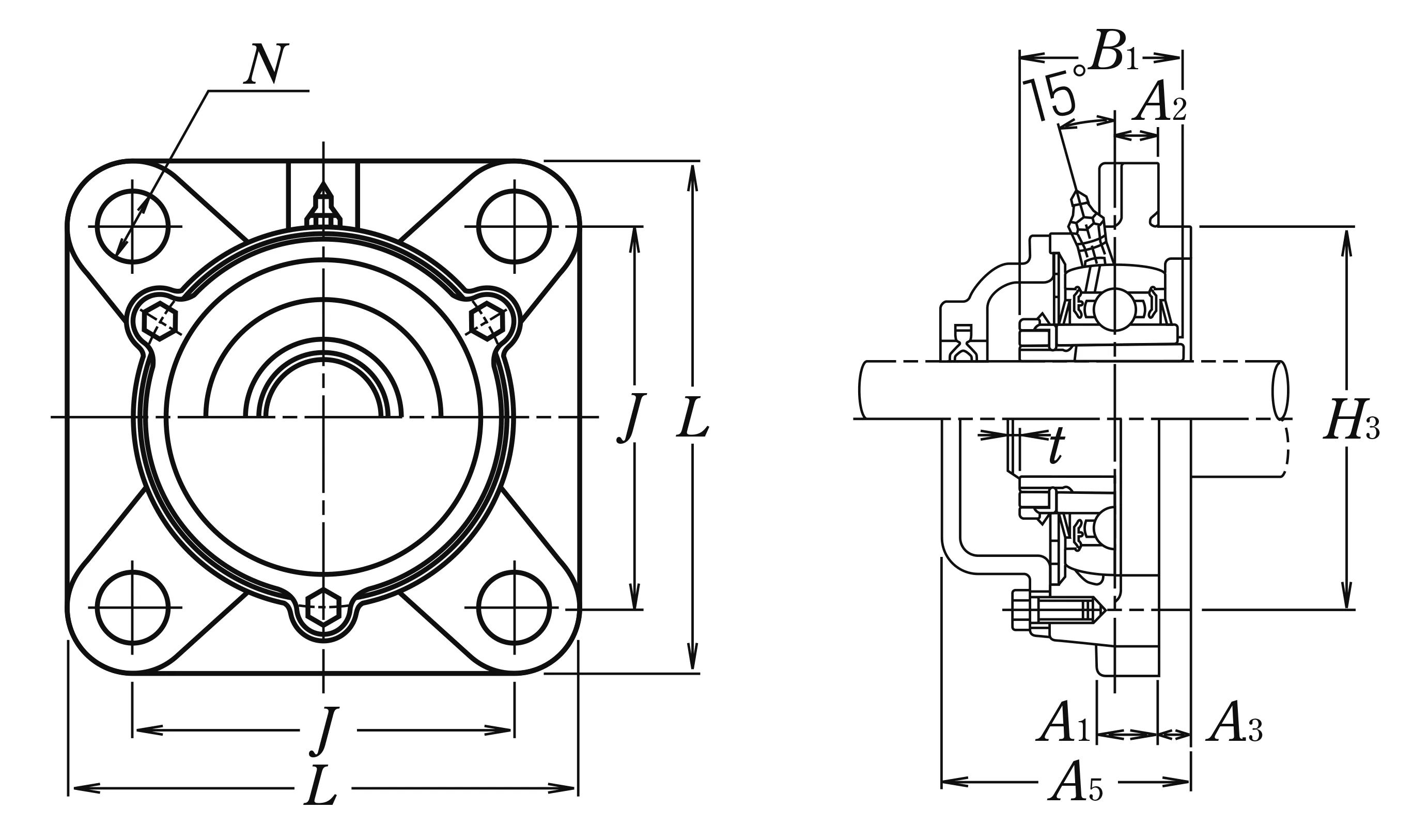

Nominal Dimensions

d	110	mm	Bore diameter
L	370	mm	Overall length
H3	330	mm	Outer diameter of Spigot Joint
J	290	mm	Distance between attachment bolts
A3	30	mm	Height of of Spigot Joint
A2	35	mm	Flange width
A1	40	mm	Flange width
A5	172	mm	Width including end cover
B,B1,B2	112	mm	Width of inner ring
t	5	mm	Clearance

Mounting information

G

M36

Bolt size

Basic Load Ratings

Cr	207	kN	Basic dynamic load rating
C0r	185	kN	Basic static load rating

Mass

mass

59

kg

Mass approx.
