CM-UCFS322D1-

Designations

CM-UCFS322D1

Included products

Bearing	UC322D1		Bearing
Housing	FS322D1		Housing

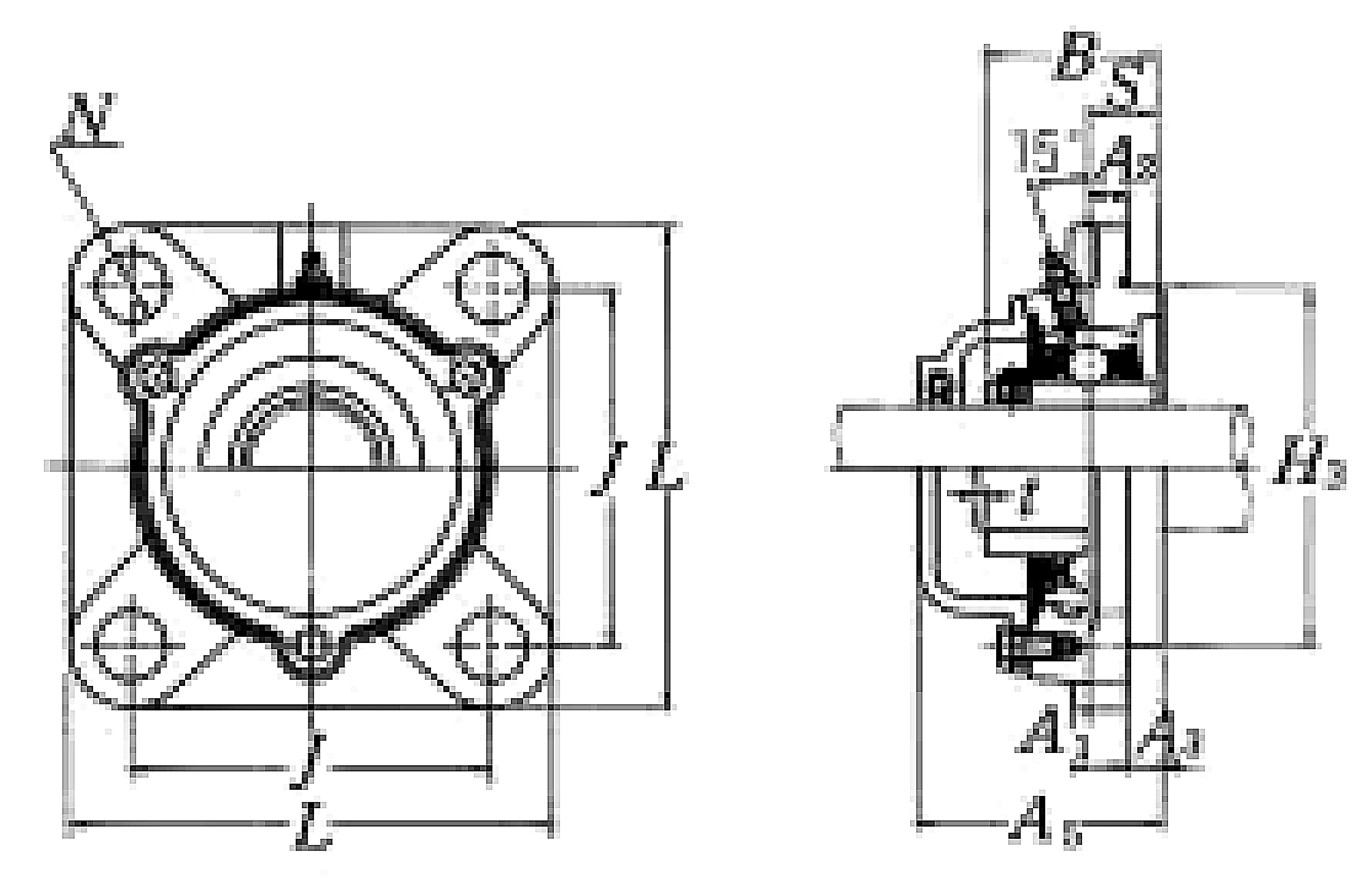

Nominal Dimensions

d	110	mm	Bore diameter
L	340	mm	Overall length
H3	300	mm	Outer diameter of Spigot Joint
J	266	mm	Distance between attachment bolts
A3	25	mm	Height of of Spigot Joint
A2	35	mm	Flange width
A1	35	mm	Flange width
A5	160	mm	Width including end cover
B,B1,B2	117	mm	Width of inner ring
t	5	mm	Clearance
S	46	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M36

Bolt size

Basic Load Ratings

Cr	205	kN	Basic dynamic load rating
C0r	179	kN	Basic static load rating

Mass

mass

45

kg

Mass approx.
