UCFS322D1-

Designations

UCFS322D1

Included products

Bearing	UC322D1		Bearing
Housing	FS322D1		Housing

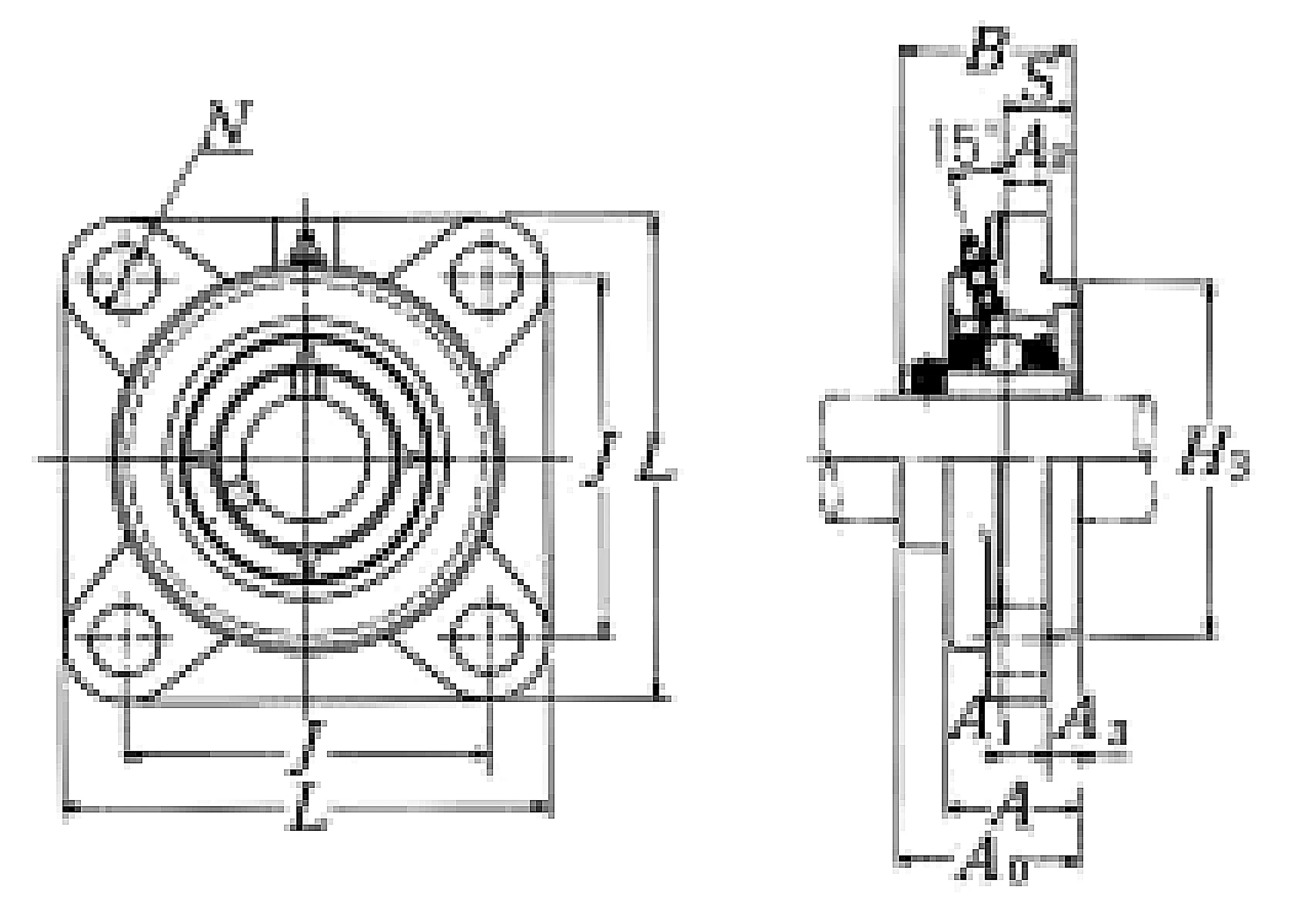

Nominal Dimensions

d	110	mm	Bore diameter
L	340	mm	Overall length
H3	300	mm	Outer diameter of Spigot Joint
J	266	mm	Distance between attachment bolts
A3	25	mm	Height of of Spigot Joint
A2	35	mm	Flange width
A1	35	mm	Flange width
A	96	mm	Base width
A0	131	mm	Overall width
B,B1,B2	117	mm	Width of inner ring
S	46	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M36

Bolt size

Basic Load Ratings

Cr	205	kN	Basic dynamic load rating
C0r	179	kN	Basic static load rating

Mass

mass

38

kg

Mass approx.
