C-UCF322D1-

Designations

C-UCF322D1

Included products

Bearing	UC322D1		Bearing
Housing	F322D1		Housing

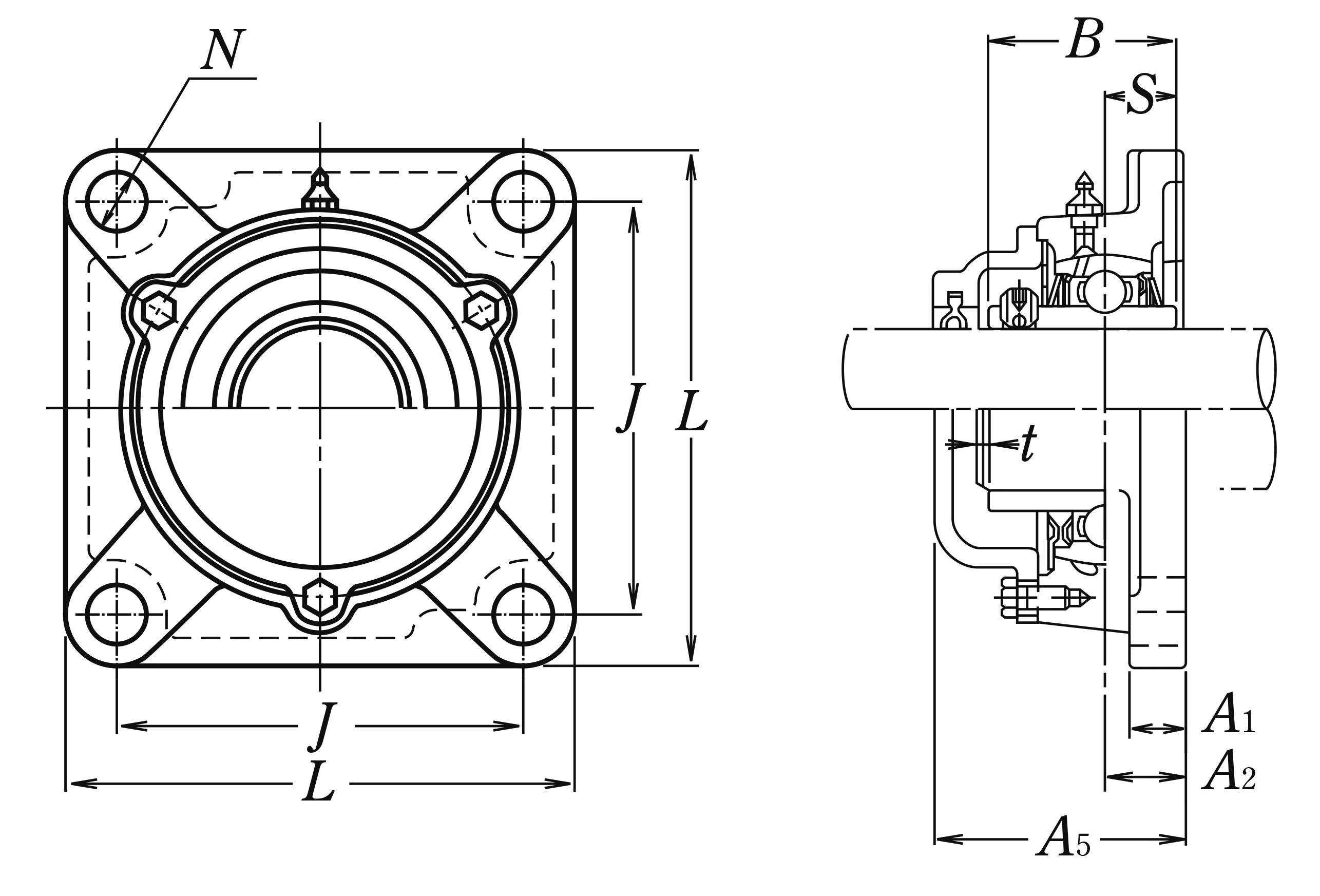

Nominal Dimensions

d	110	mm	Bore diameter
L	340	mm	Overall length
J	266	mm	Distance between attachment bolts
N	41	mm	Diameter of attachment bolt hole
A2	60	mm	Flange width
A1	35	mm	Flange width
A5	160	mm	Width including end cover
A0	131	mm	Overall width
B,B1,B2	117	mm	Width of inner ring
t	5	mm	Clearance
S	46	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M36

Bolt size

Basic Load Ratings

Cr	205	kN	Basic dynamic load rating
C0r	179	kN	Basic static load rating

Mass

mass

40

kg

Mass approx.
