CM-UCFS321D1-

Designations

CM-UCFS321D1

Included products

Bearing	UC321D1		Bearing
Housing	FS321D1		Housing

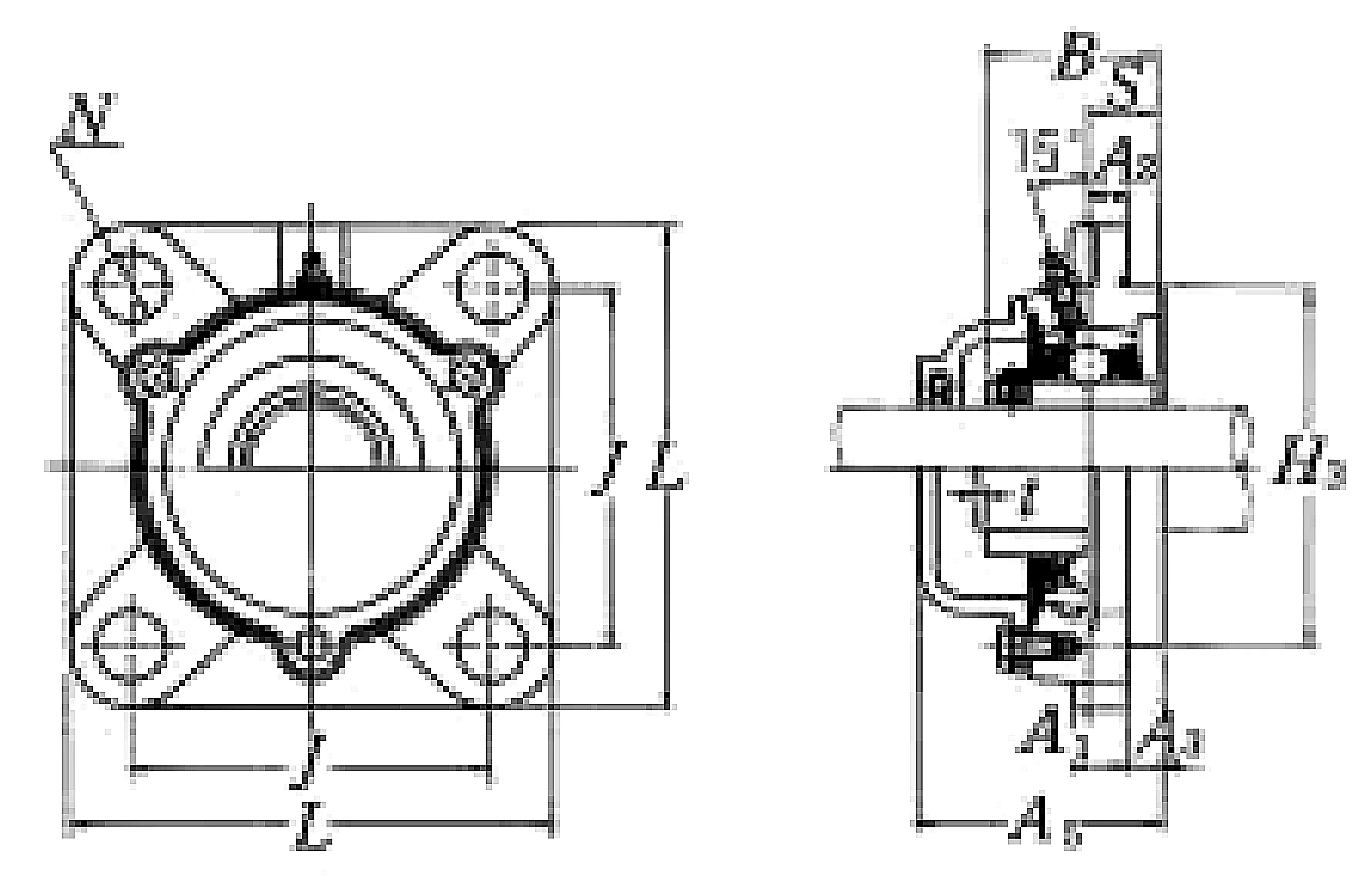

Nominal Dimensions

d	105	mm	Bore diameter
L	310	mm	Overall length
H3	260	mm	Outer diameter of Spigot Joint
J	242	mm	Distance between attachment bolts
A3	20	mm	Height of of Spigot Joint
A2	39	mm	Flange width
A1	32	mm	Flange width
A5	156	mm	Width including end cover
B,B1,B2	112	mm	Width of inner ring
t	5	mm	Clearance
S	44	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M33

Bolt size

Basic Load Ratings

Cr	184	kN	Basic dynamic load rating
C0r	153	kN	Basic static load rating

Mass

mass

33

kg

Mass approx.
