UCFS319D1-

Designations

UCFS319D1

Included products

Bearing	UC319D1		Bearing
Housing	FS319D1		Housing

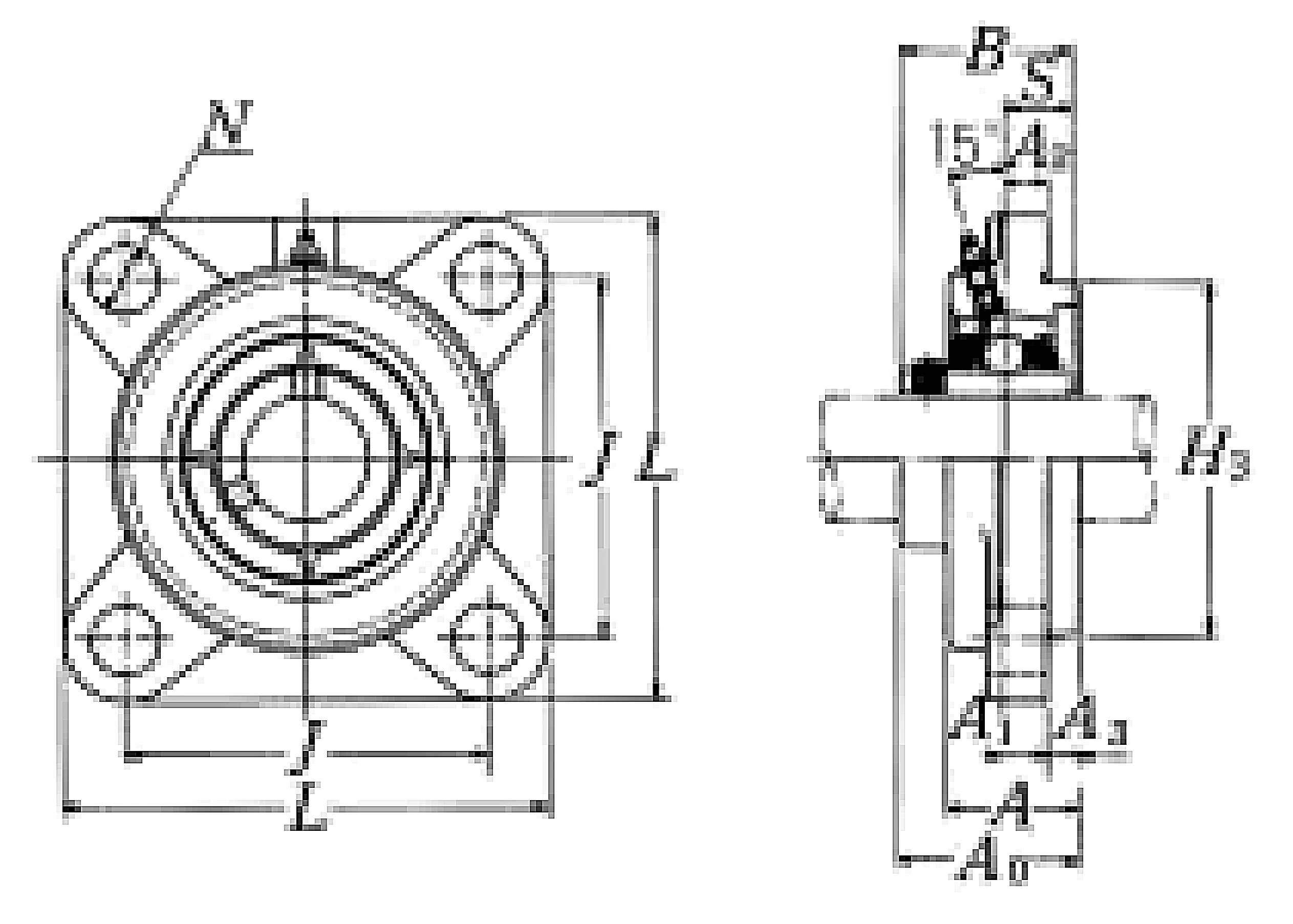

Nominal Dimensions

d	95	mm	Bore diameter
L	290	mm	Overall length
H3	250	mm	Outer diameter of Spigot Joint
J	228	mm	Distance between attachment bolts
A3	20	mm	Height of of Spigot Joint
A2	39	mm	Flange width
A1	30	mm	Flange width
A	94	mm	Base width
A0	121	mm	Overall width
B,B1,B2	103	mm	Width of inner ring
S	41	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M30

Bolt size

Basic Load Ratings

Cr	153	kN	Basic dynamic load rating
C0r	119	kN	Basic static load rating

Mass

mass

24

kg

Mass approx.
