CM-UKFS320D1-

Designations

CM-UKFS320D1

Included products

Bearing	UK320D1		Bearing
Housing	FS320D1		Housing

Associated products

Adapter sleeve

H2320X

Adapter sleeve

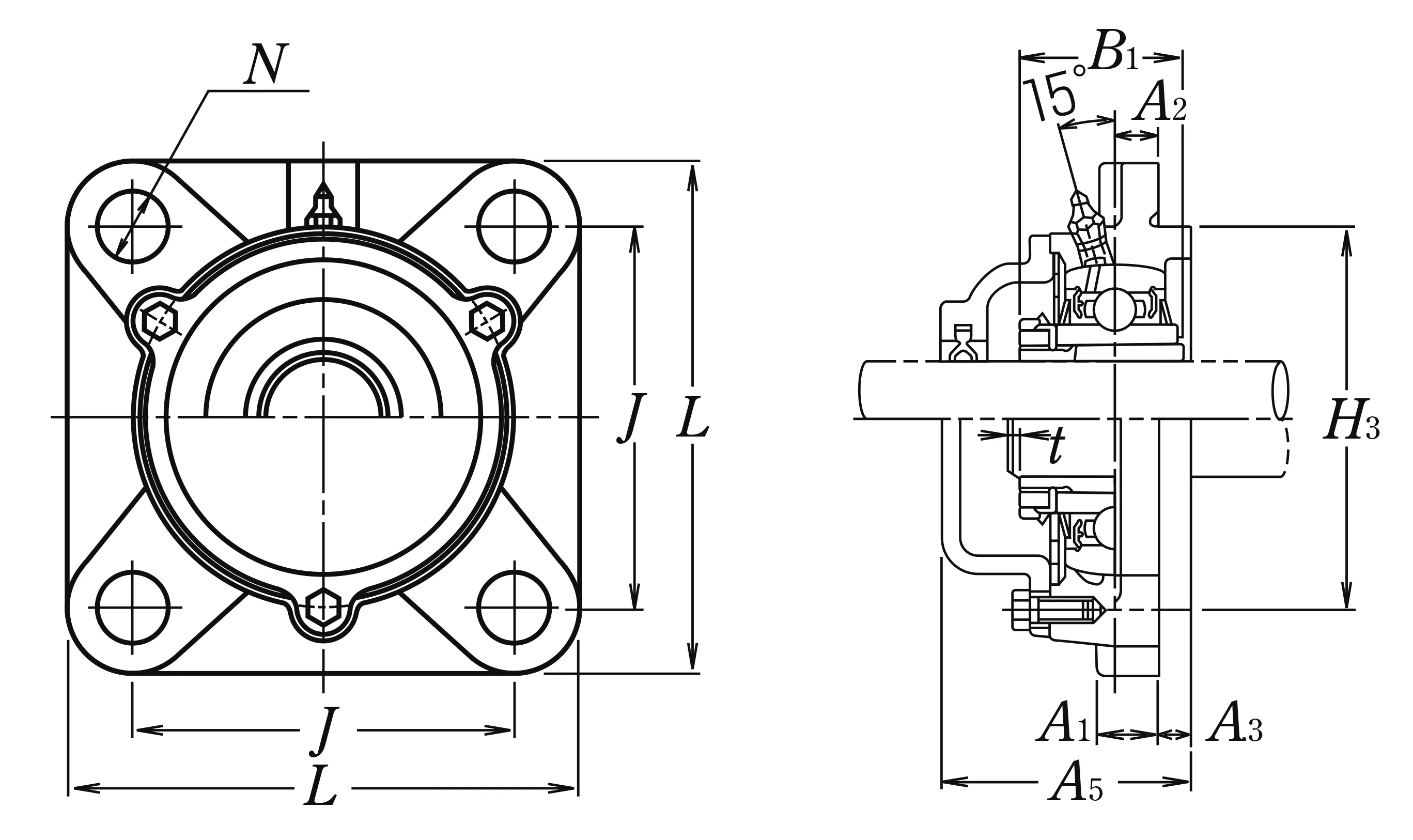

Nominal Dimensions

d	90	mm	Bore diameter
L	310	mm	Overall length
H3	260	mm	Outer diameter of Spigot Joint
J	242	mm	Distance between attachment bolts
A3	20	mm	Height of of Spigot Joint
A2	39	mm	Flange width
A1	32	mm	Flange width
A5	154	mm	Width including end cover
B,B1,B2	97	mm	Width of inner ring
t	5	mm	Clearance

Mounting information

G

M33

Bolt size

Basic Load Ratings

Cr	173	kN	Basic dynamic load rating
C0r	141	kN	Basic static load rating

Mass

mass

34

kg

Mass approx.
