CM-UCFS318D1-

Designations

CM-UCFS318D1

Included products

Bearing	UC318D1		Bearing
Housing	FS318D1		Housing

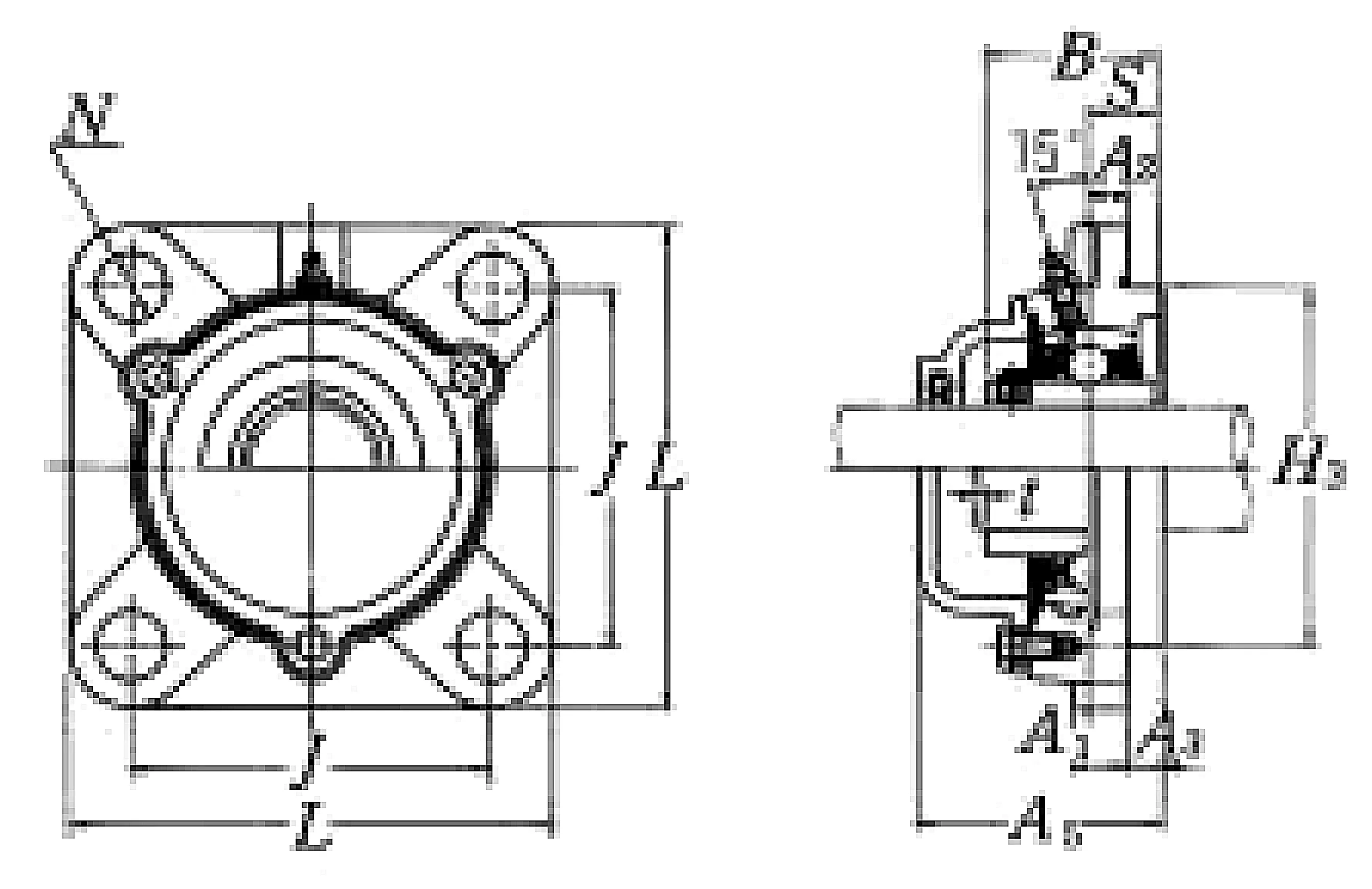

Nominal Dimensions

d	90	mm	Bore diameter
L	280	mm	Overall length
H3	240	mm	Outer diameter of Spigot Joint
J	216	mm	Distance between attachment bolts
A3	20	mm	Height of of Spigot Joint
A2	24	mm	Flange width
A1	30	mm	Flange width
A5	129	mm	Width including end cover
B,B1,B2	96	mm	Width of inner ring
t	5	mm	Clearance
S	40	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M30

Bolt size

Basic Load Ratings

Cr	143	kN	Basic dynamic load rating
C0r	107	kN	Basic static load rating

Mass

mass

24

kg

Mass approx.
