CM-UCF318D1-

Designations

CM-UCF318D1

Included products

Bearing	UC318D1		Bearing
Housing	F318D1		Housing

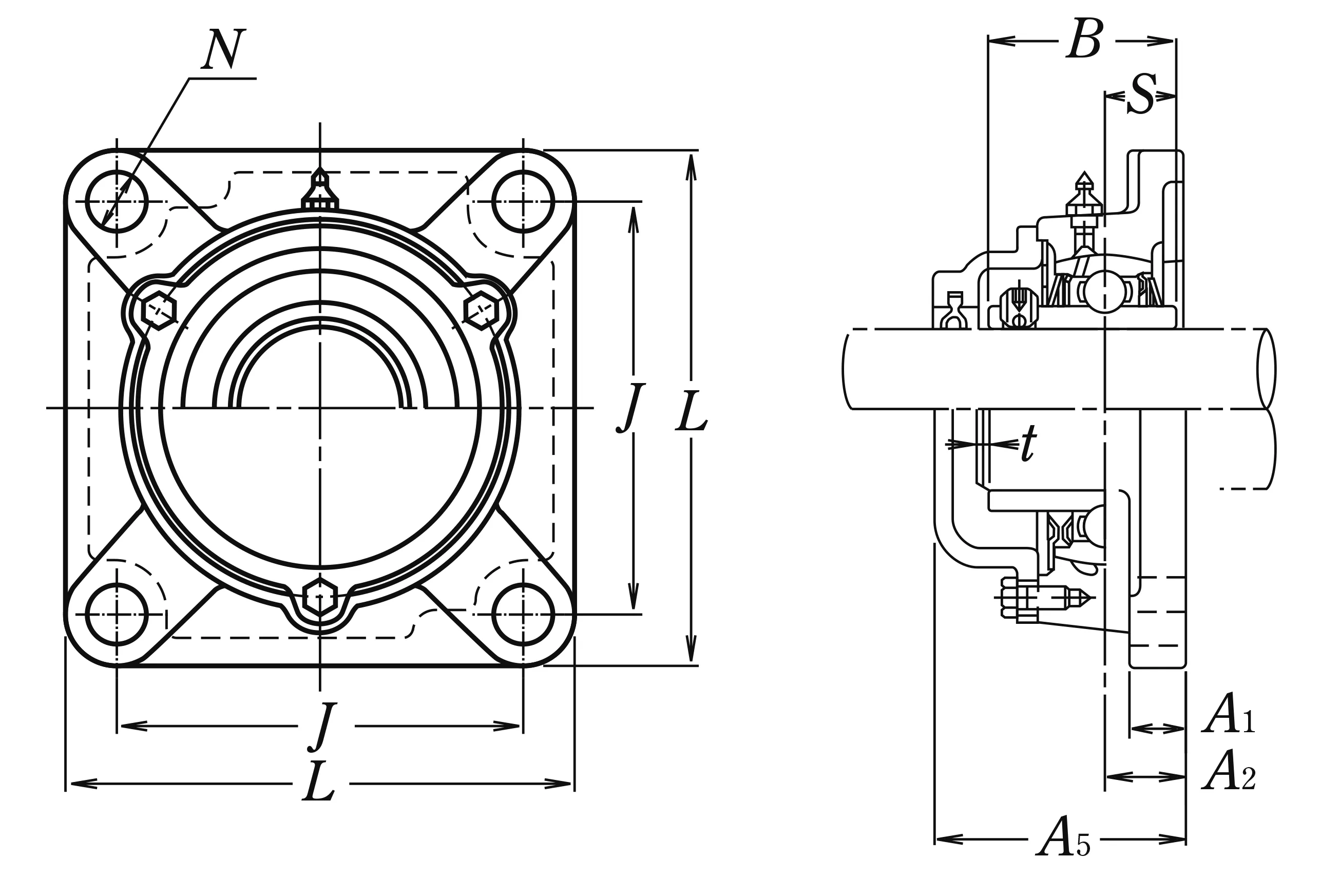

Nominal Dimensions

d	90	mm	Bore diameter
L	280	mm	Overall length
J	216	mm	Distance between attachment bolts
N	35	mm	Diameter of attachment bolt hole
A2	44	mm	Flange width
A1	30	mm	Flange width
A5	129	mm	Width including end cover
A0	100	mm	Overall width
B,B1,B2	96	mm	Width of inner ring
t	5	mm	Clearance
S	40	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M30

Bolt size

Basic Load Ratings

Cr	143	kN	Basic dynamic load rating
C0r	107	kN	Basic static load rating

Mass

mass

23

kg

Mass approx.
