CM-UKFX20D1-

Designations

CM-UKFX20D1

Included products

Bearing	UKX20D1		Bearing
Housing	FX20D1		Housing

Associated products

Adapter sleeve

H2320X

Adapter sleeve

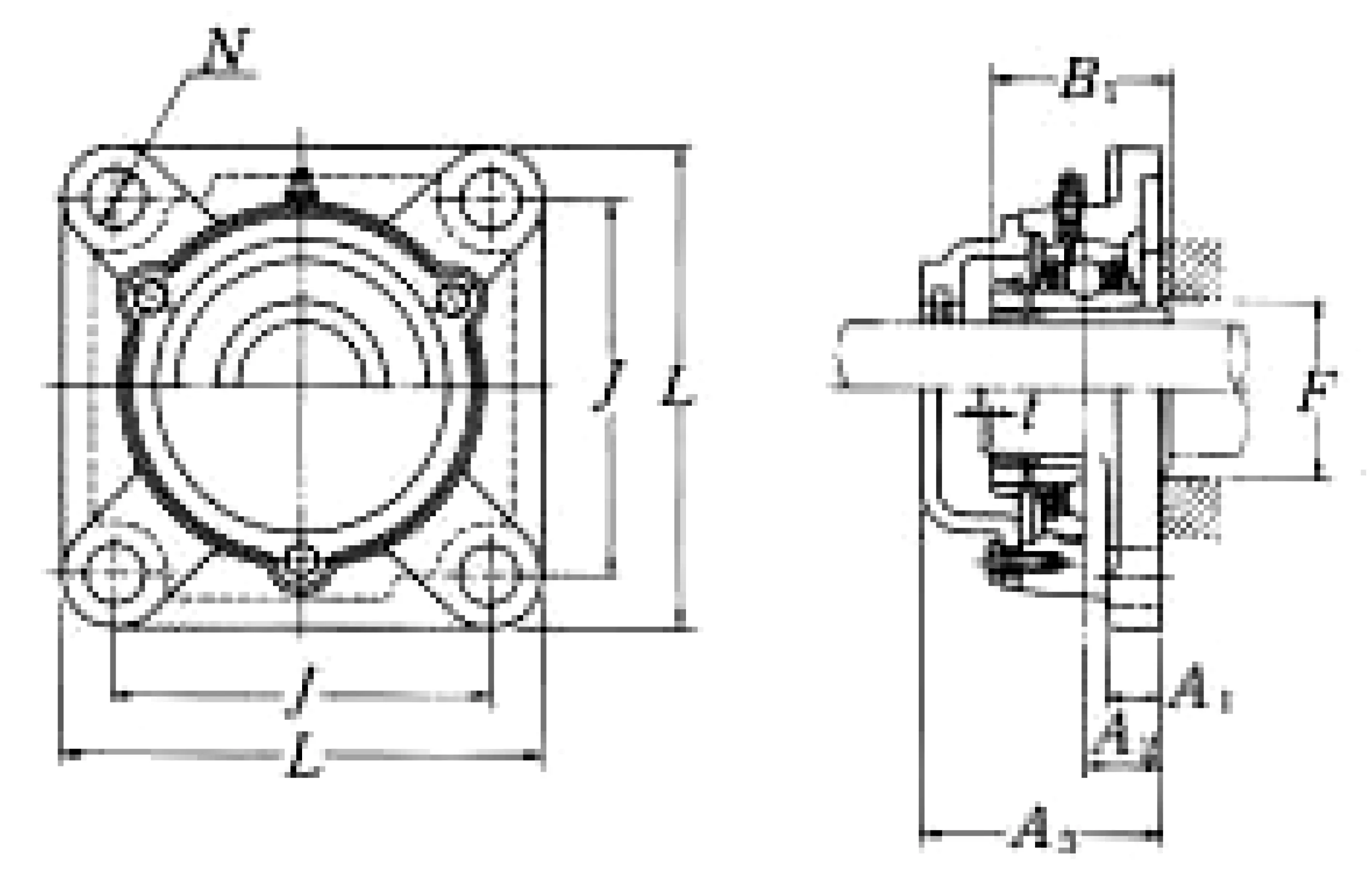

Nominal Dimensions

d	90	mm	Bore diameter
L	268	mm	Overall length
J	211	mm	Distance between attachment bolts
N	31	mm	Diameter of attachment bolt hole
A2	59	mm	Flange width
A1	31	mm	Flange width
A5	146.5	mm	Width including end cover
A0	107.5	mm	Overall width
B,B1,B2	97	mm	Width of inner ring
t	5	mm	Clearance

Mounting information

G

M27

Bolt size

Basic Load Ratings

Cr	133	kN	Basic dynamic load rating
C0r	105	kN	Basic static load rating

Mass

mass

22

kg

Mass approx.
