CM-UCF218D1-

Designations

CM-UCF218D1

Included products

Bearing	UC218D1		Bearing
Housing	F218D1		Housing

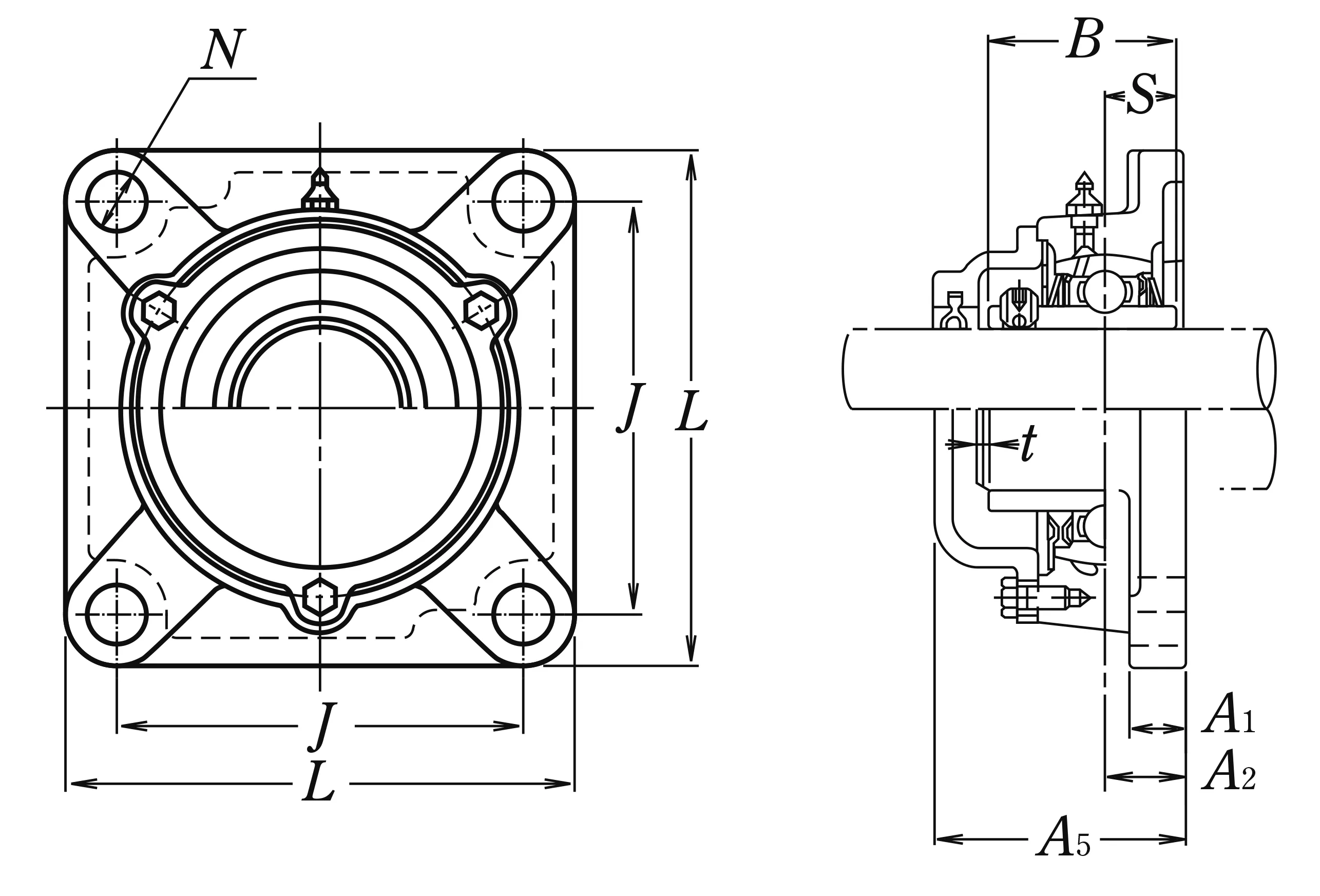

Nominal Dimensions

d	90	mm	Bore diameter
L	235	mm	Overall length
J	187	mm	Distance between attachment bolts
N	23	mm	Diameter of attachment bolt hole
A2	40	mm	Flange width
A1	24	mm	Flange width
A5	122	mm	Width including end cover
A0	96.3	mm	Overall width
B,B1,B2	96	mm	Width of inner ring
t	5	mm	Clearance
S	39.7	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	96	kN	Basic dynamic load rating
C0r	71.5	kN	Basic static load rating

Mass

mass

13

kg

Mass approx.
