UKFS319D1-

Designations

UKFS319D1

Included products

Bearing	UK319D1		Bearing
Housing	FS319D1		Housing

Associated products

Adapter sleeve

H2319X

Adapter sleeve

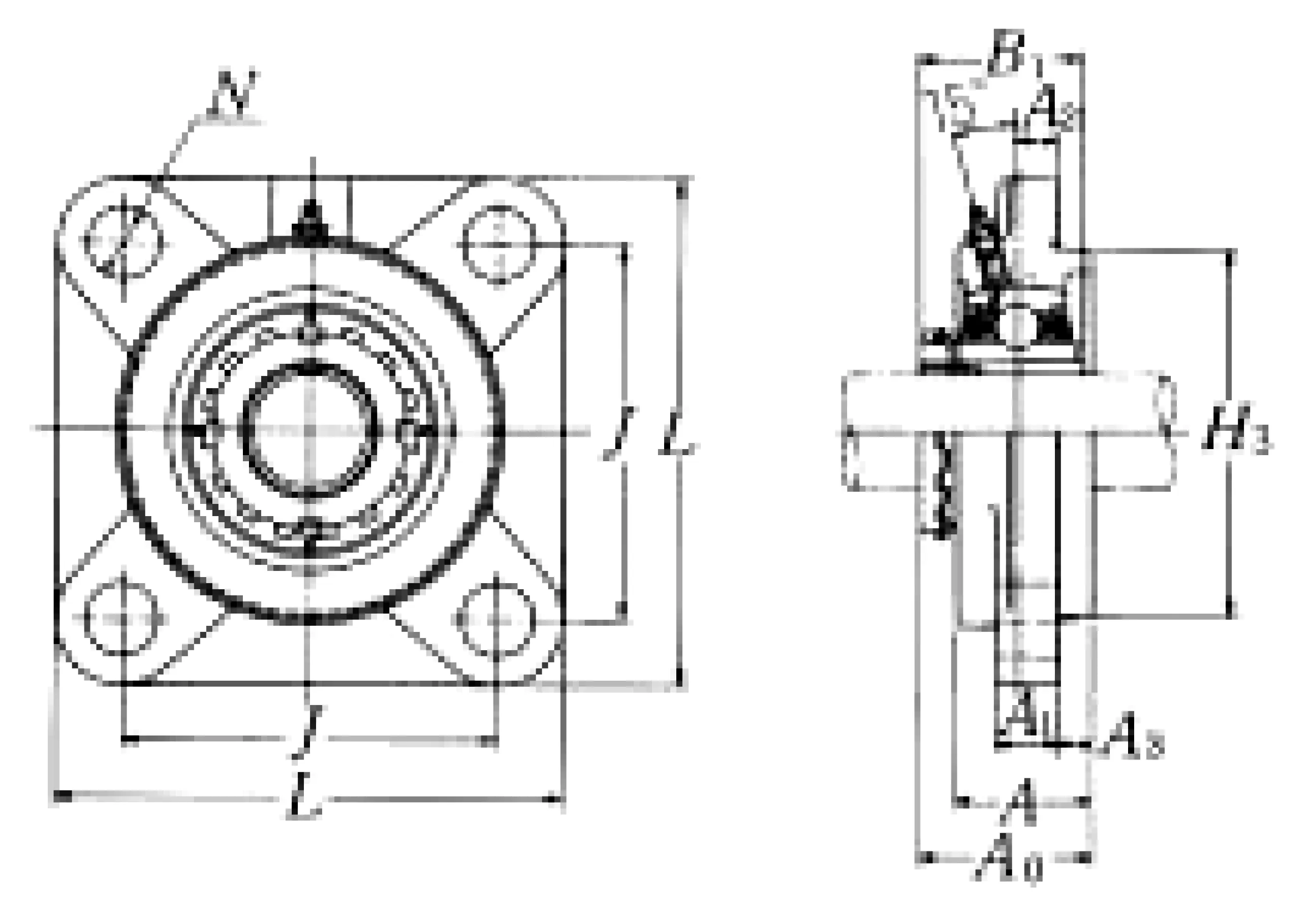

Nominal Dimensions

d	85	mm	Bore diameter
L	290	mm	Overall length
H3	250	mm	Outer diameter of Spigot Joint
J	228	mm	Distance between attachment bolts
A3	20	mm	Height of of Spigot Joint
A2	39	mm	Flange width
A1	30	mm	Flange width
A	94	mm	Base width
A0	111.5	mm	Overall width
B,B1,B2	90	mm	Width of inner ring

Mounting information

G

M30

Bolt size

Basic Load Ratings

Cr	153	kN	Basic dynamic load rating
C0r	119	kN	Basic static load rating

Mass

mass

24

kg

Mass approx.
