UKFS318D1-

Designations

UKFS318D1

Included products

Bearing	UK318D1		Bearing
Housing	FS318D1		Housing

Associated products

Adapter sleeve

H2318X

Adapter sleeve

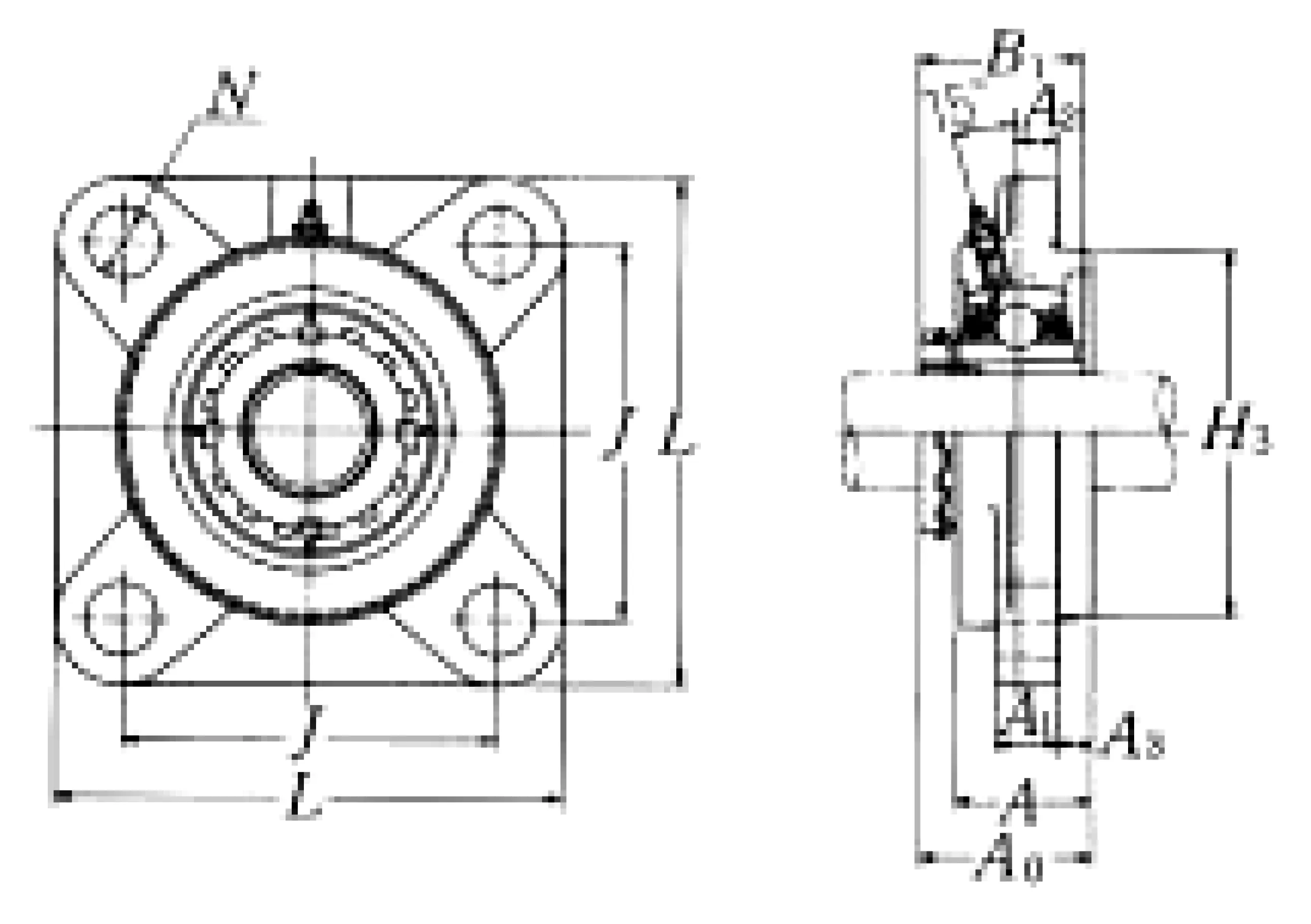

Nominal Dimensions

d	80	mm	Bore diameter
L	280	mm	Overall length
H3	240	mm	Outer diameter of Spigot Joint
J	216	mm	Distance between attachment bolts
A3	20	mm	Height of of Spigot Joint
A2	24	mm	Flange width
A1	30	mm	Flange width
A	76	mm	Base width
A0	94	mm	Overall width
B,B1,B2	86	mm	Width of inner ring

Mounting information

G

M30

Bolt size

Basic Load Ratings

Cr	143	kN	Basic dynamic load rating
C0r	107	kN	Basic static load rating

Mass

mass

21

kg

Mass approx.
