UCFX16D1-

Designations

UCFX16D1

Included products

Bearing	UCX16D1		Bearing
Housing	FX16D1		Housing

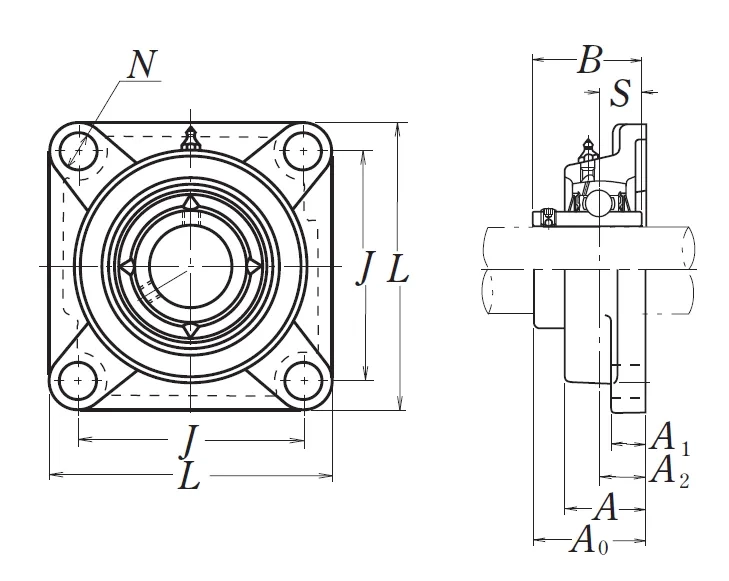

Nominal Dimensions

d	80	mm	Bore diameter
L	214	mm	Overall length
J	171	mm	Distance between attachment bolts
N	23	mm	Diameter of attachment bolt hole
A2	40	mm	Flange width
A1	24	mm	Flange width
A	70	mm	Base width
A0	91.6	mm	Overall width
B,B1,B2	85.7	mm	Width of inner ring
S	34.1	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	83.5	kN	Basic dynamic load rating
C0r	64	kN	Basic static load rating

Mass

mass

11

kg

Mass approx.
