UKFS317D1-

Designations

UKFS317D1

Included products

Bearing	UK317D1		Bearing
Housing	FS317D1		Housing

Associated products

Adapter sleeve

H2317X

Adapter sleeve

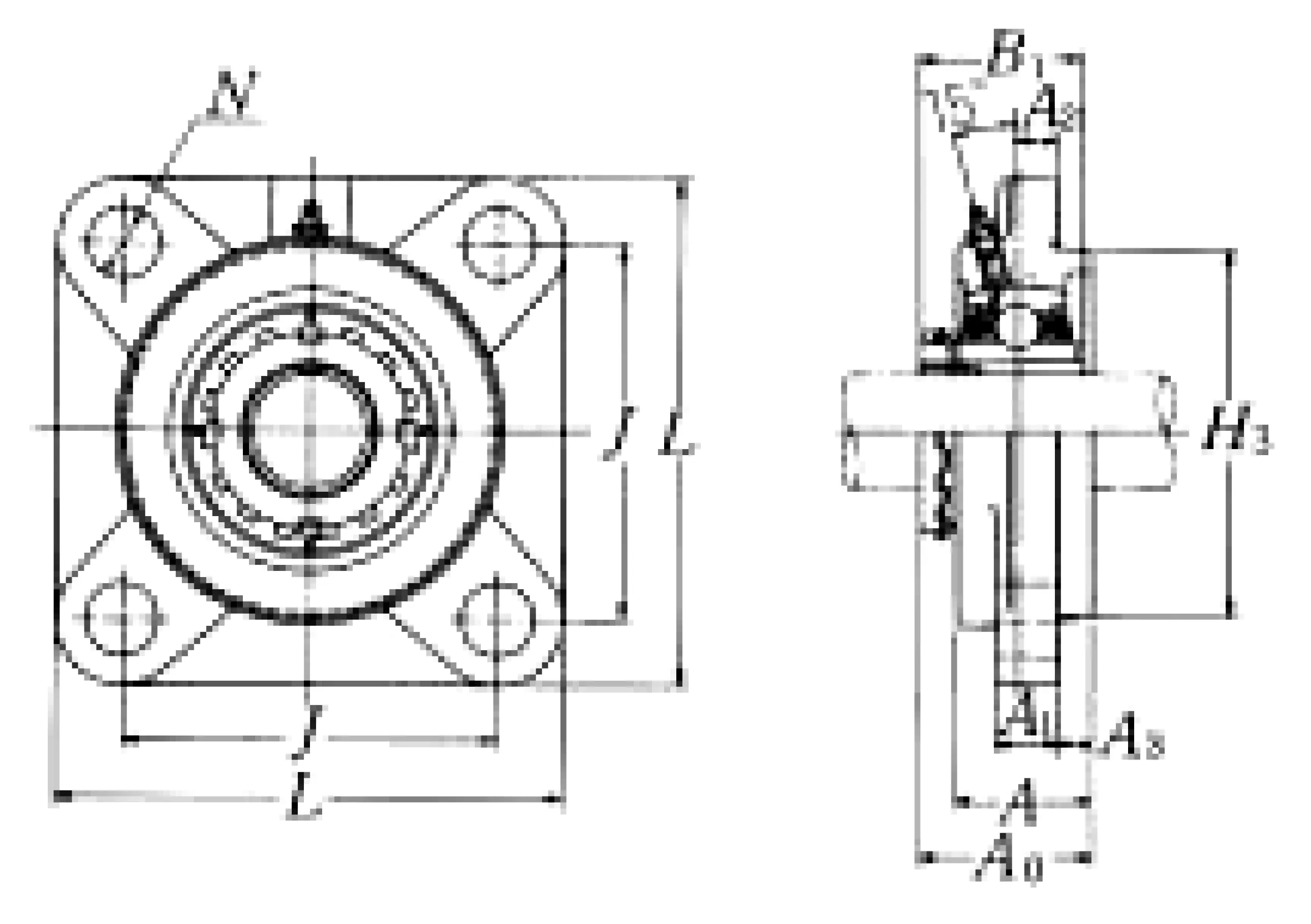

Nominal Dimensions

d	75	mm	Bore diameter
L	260	mm	Overall length
H3	220	mm	Outer diameter of Spigot Joint
J	204	mm	Distance between attachment bolts
A3	20	mm	Height of of Spigot Joint
A2	24	mm	Flange width
A1	27	mm	Flange width
A	74	mm	Base width
A0	92	mm	Overall width
B,B1,B2	82	mm	Width of inner ring

Mounting information

G

M27

Bolt size

Basic Load Ratings

Cr	133	kN	Basic dynamic load rating
C0r	97	kN	Basic static load rating

Mass

mass

17

kg

Mass approx.
