UCFS315D1-

Designations

UCFS315D1

Included products

Bearing	UC315D1		Bearing
Housing	FS315D1		Housing

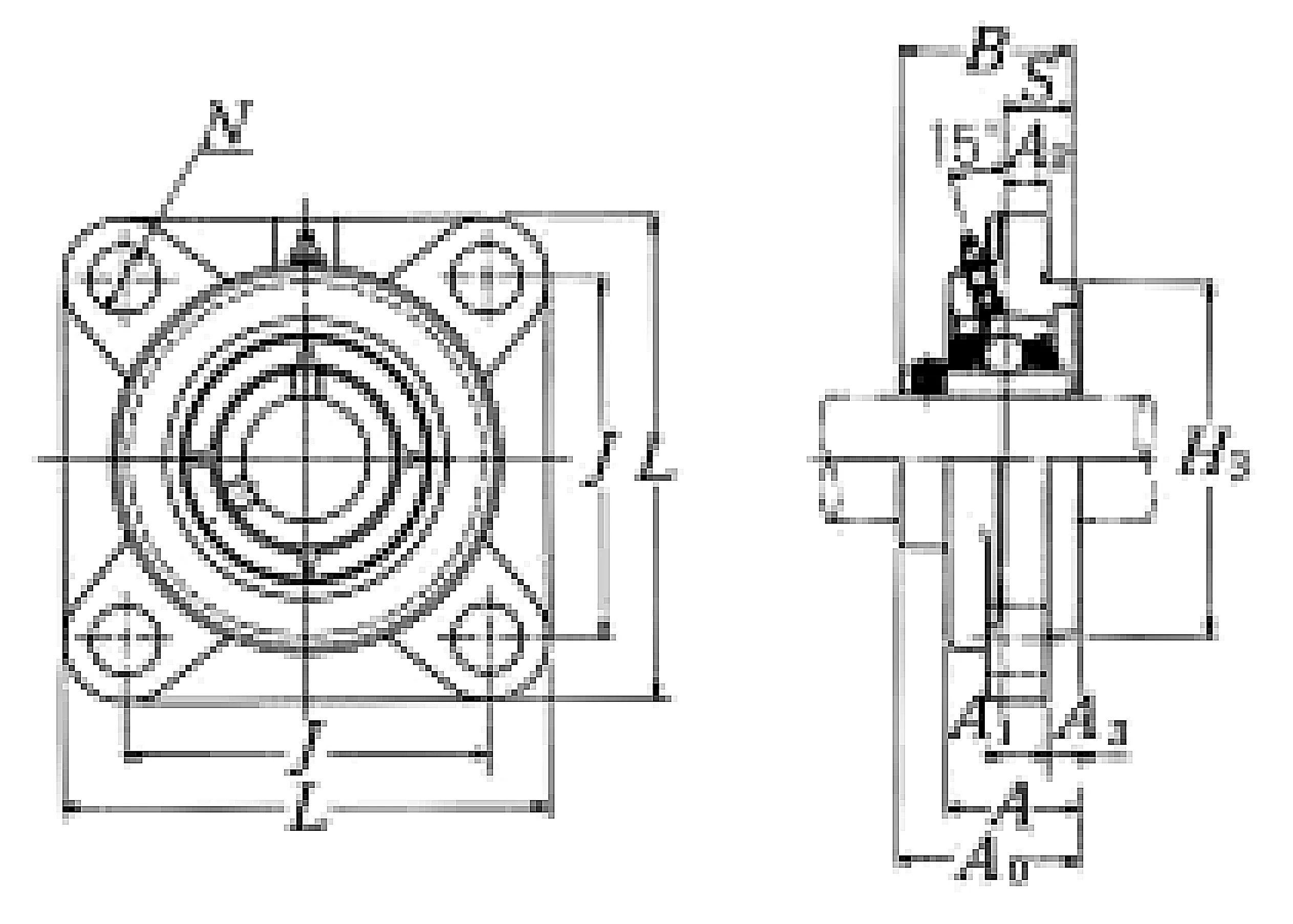

Nominal Dimensions

d	75	mm	Bore diameter
L	236	mm	Overall length
H3	200	mm	Outer diameter of Spigot Joint
J	184	mm	Distance between attachment bolts
A3	18	mm	Height of of Spigot Joint
A2	21	mm	Flange width
A1	25	mm	Flange width
A	66	mm	Base width
A0	89	mm	Overall width
B,B1,B2	82	mm	Width of inner ring
S	32	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	113	kN	Basic dynamic load rating
C0r	77	kN	Basic static load rating

Mass

mass

12

kg

Mass approx.
