CM-UKFS316D1-

Designations

CM-UKFS316D1

Included products

Bearing	UK316D1		Bearing
Housing	FS316D1		Housing

Associated products

Adapter sleeve

H2316X

Adapter sleeve

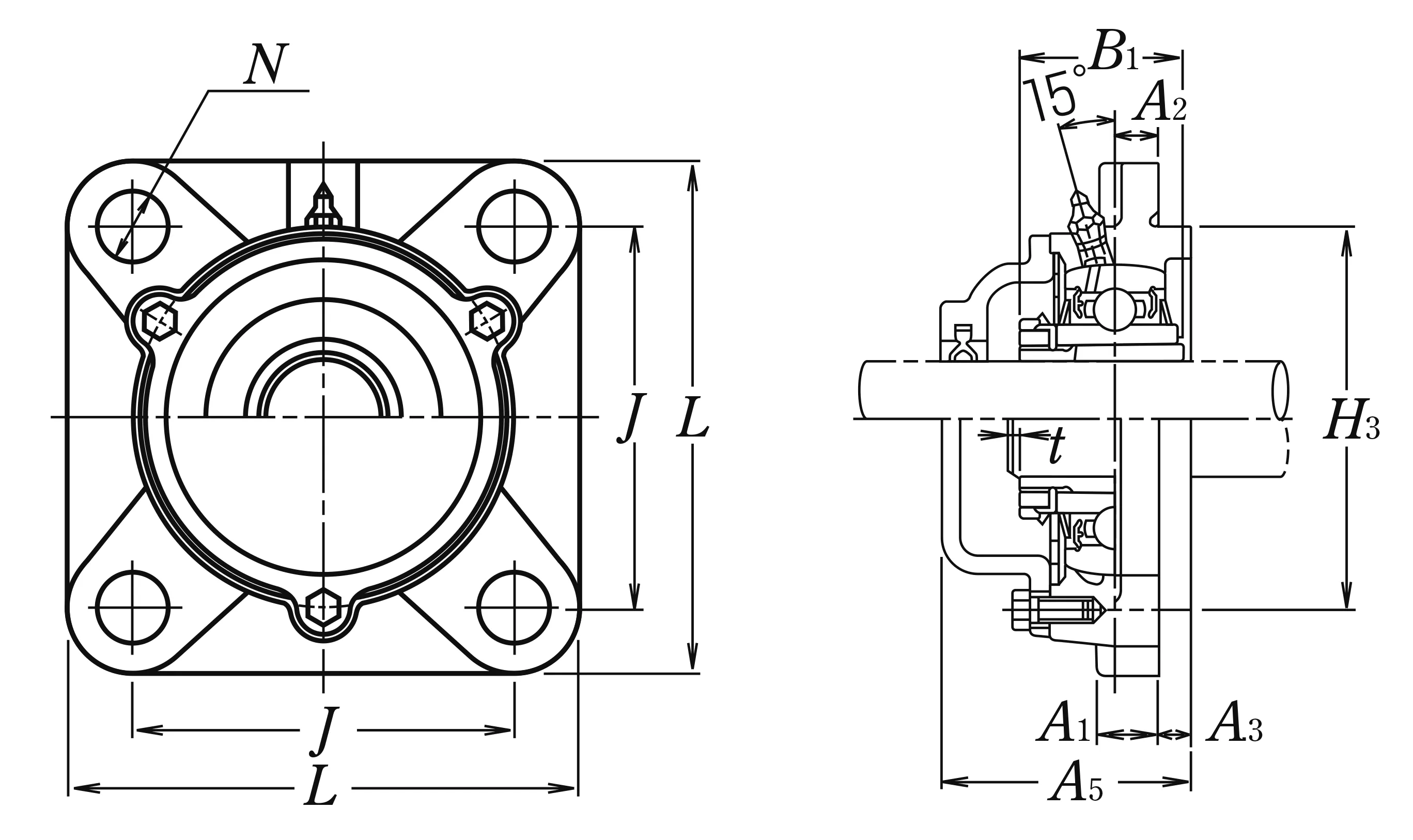

Nominal Dimensions

d	70	mm	Bore diameter
L	250	mm	Overall length
H3	210	mm	Outer diameter of Spigot Joint
J	196	mm	Distance between attachment bolts
A3	20	mm	Height of of Spigot Joint
A2	18	mm	Flange width
A1	27	mm	Flange width
A5	116	mm	Width including end cover
B,B1,B2	78	mm	Width of inner ring
t	4	mm	Clearance

Mounting information

G

M27

Bolt size

Basic Load Ratings

Cr	123	kN	Basic dynamic load rating
C0r	86.5	kN	Basic static load rating

Mass

mass

17

kg

Mass approx.
