C-UKF316D1-

Designations

C-UKF316D1

Included products

Bearing	UK316D1		Bearing
Housing	F316D1		Housing

Associated products

Adapter sleeve

H2316X

Adapter sleeve

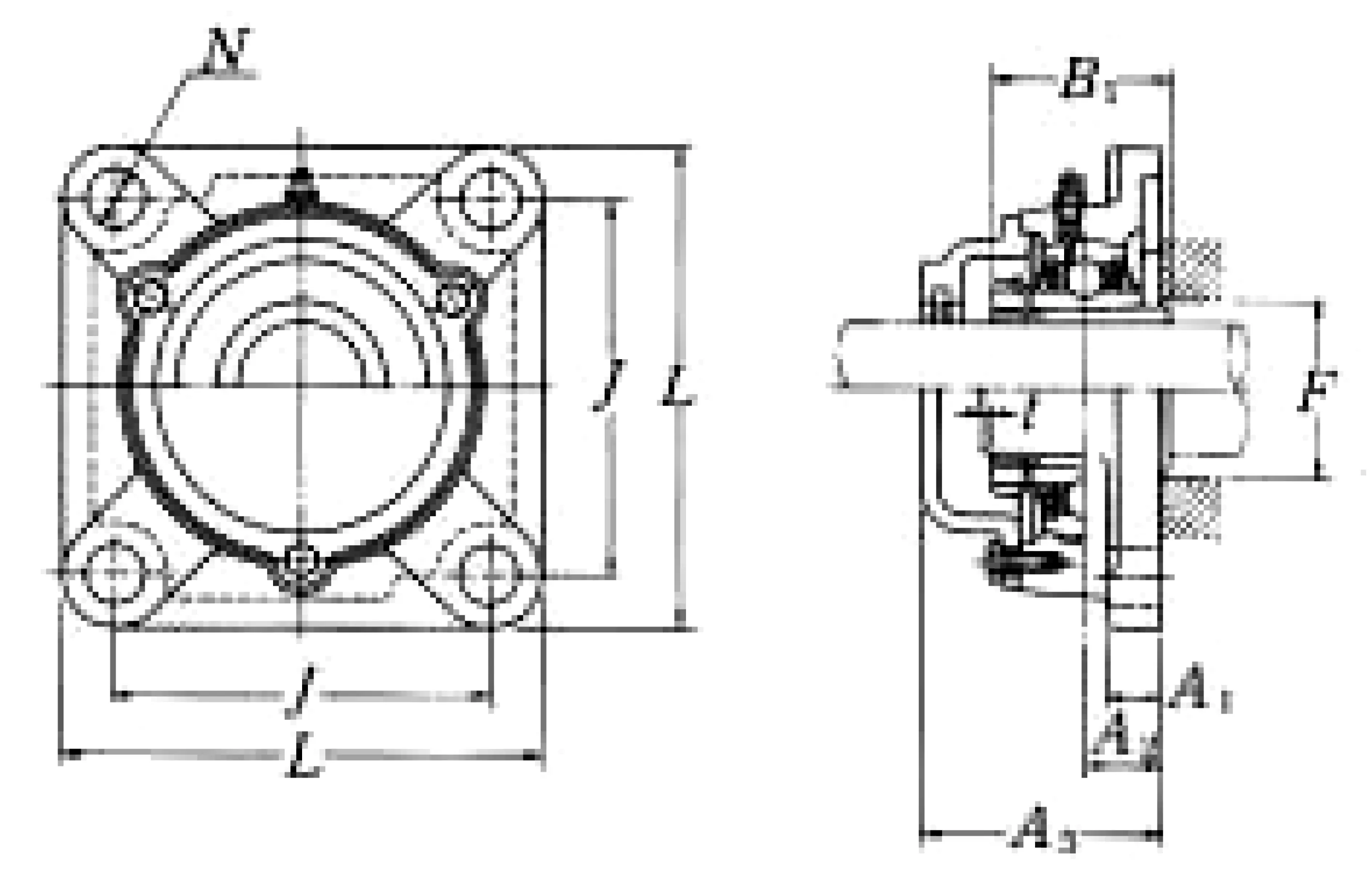

Nominal Dimensions

d	70	mm	Bore diameter
L	250	mm	Overall length
J	196	mm	Distance between attachment bolts
N	31	mm	Diameter of attachment bolt hole
A2	38	mm	Flange width
A1	27	mm	Flange width
A5	116	mm	Width including end cover
A0	84	mm	Overall width
B,B1,B2	78	mm	Width of inner ring
t	4	mm	Clearance

Mounting information

G

M27

Bolt size

Basic Load Ratings

Cr	123	kN	Basic dynamic load rating
C0r	86.5	kN	Basic static load rating

Mass

mass

16

kg

Mass approx.
