CM-UCFS314D1-

Designations

CM-UCFS314D1

Included products

Bearing	UC314D1		Bearing
Housing	FS314D1		Housing

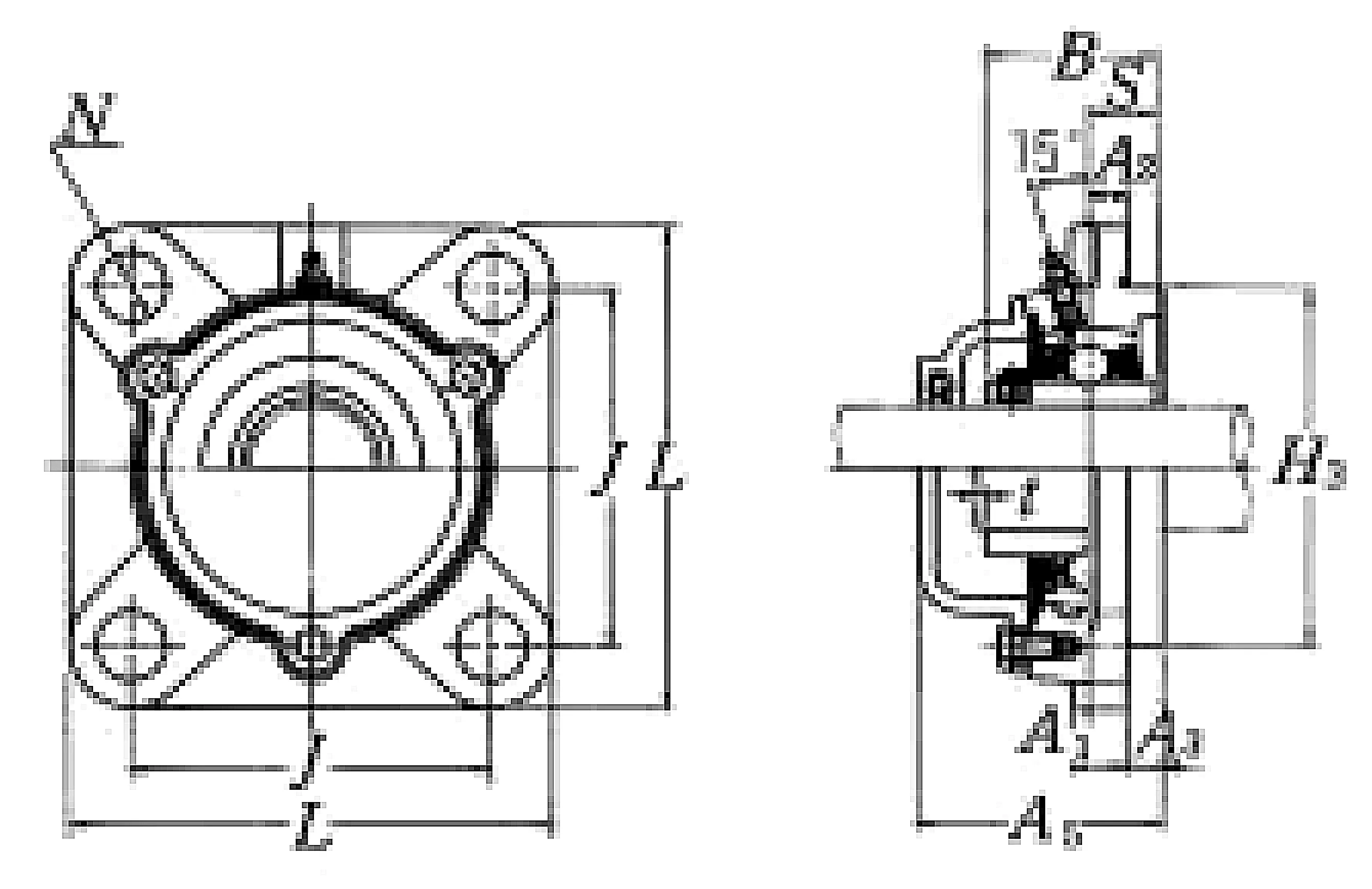

Nominal Dimensions

d	70	mm	Bore diameter
L	226	mm	Overall length
H3	185	mm	Outer diameter of Spigot Joint
J	178	mm	Distance between attachment bolts
A3	18	mm	Height of of Spigot Joint
A2	18	mm	Flange width
A1	25	mm	Flange width
A5	106	mm	Width including end cover
B,B1,B2	78	mm	Width of inner ring
t	4	mm	Clearance
S	33	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	104	kN	Basic dynamic load rating
C0r	68	kN	Basic static load rating

Mass

mass

12

kg

Mass approx.
