C-UCF214D1-

Designations

C-UCF214D1

Included products

Bearing	UC214D1		Bearing
Housing	F214D1		Housing

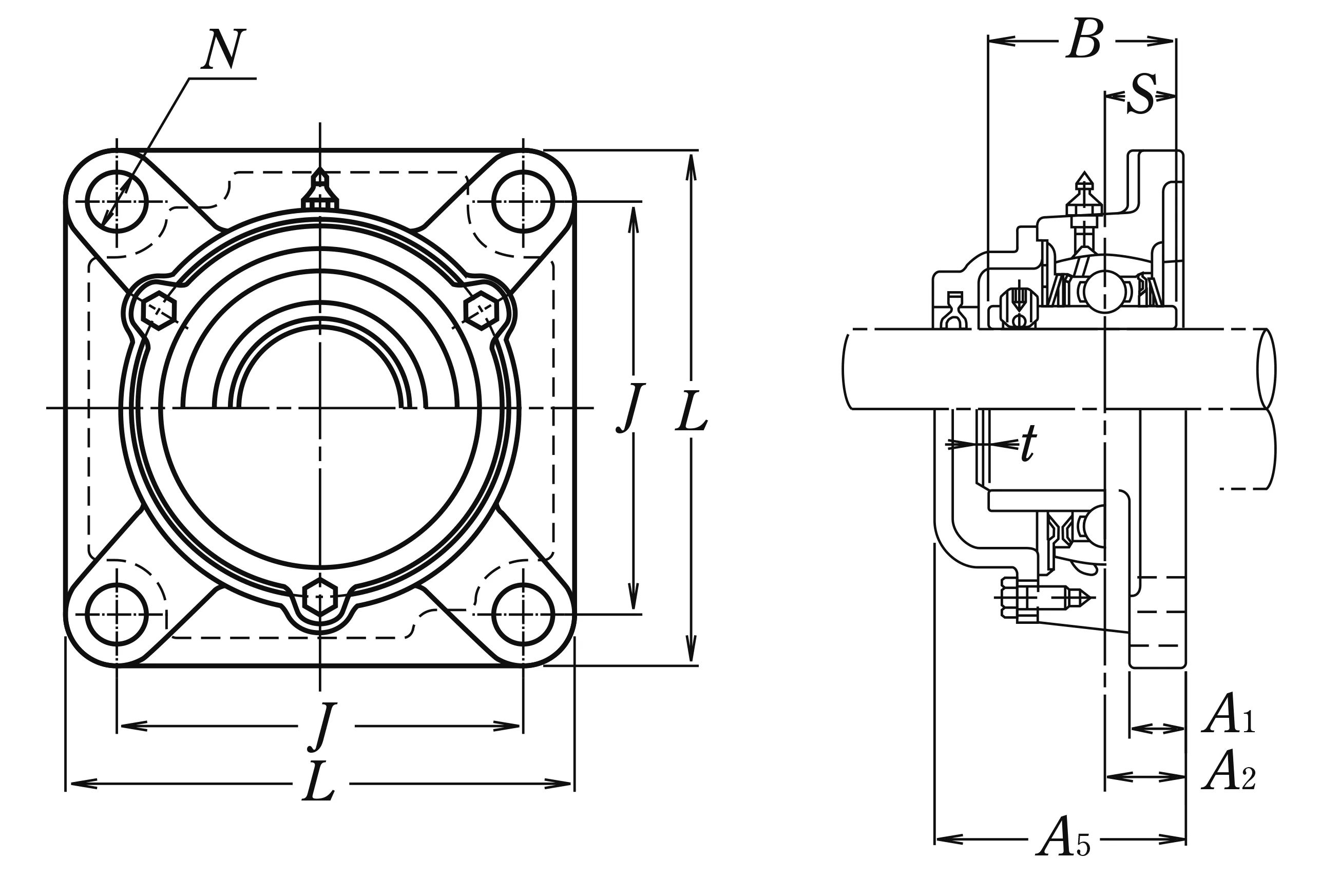

Nominal Dimensions

d	70	mm	Bore diameter
L	193	mm	Overall length
J	152	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A2	31	mm	Flange width
A1	22	mm	Flange width
A5	98	mm	Width including end cover
A0	75.4	mm	Overall width
B,B1,B2	74.6	mm	Width of inner ring
t	4	mm	Clearance
S	31.2	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	62	kN	Basic dynamic load rating
C0r	44	kN	Basic static load rating

Mass

mass

7.4

kg

Mass approx.
