C-UKFS315D1-

Designations

C-UKFS315D1

Included products

Bearing	UK315D1		Bearing
Housing	FS315D1		Housing

Associated products

Adapter sleeve

H2315X

Adapter sleeve

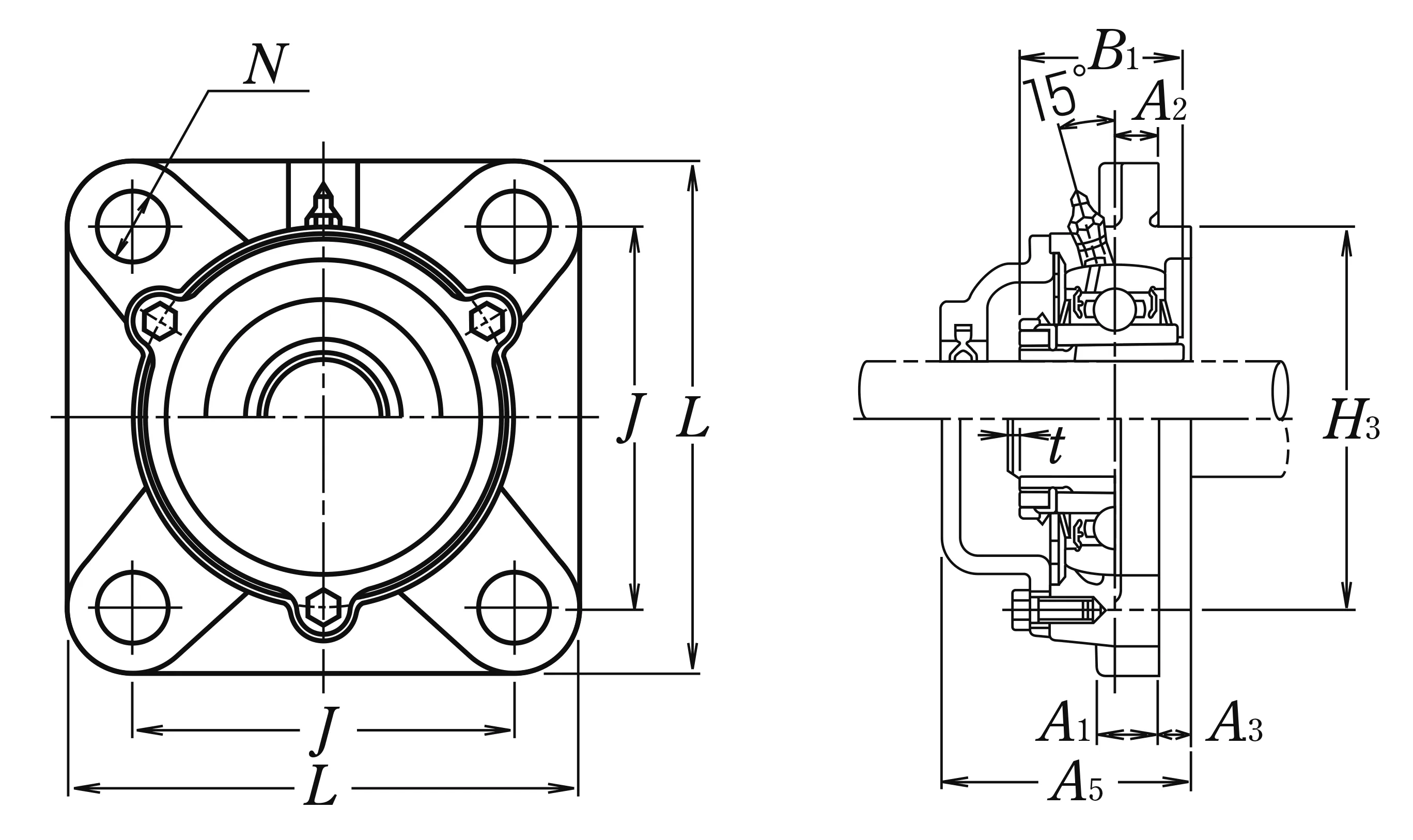

Nominal Dimensions

d	65	mm	Bore diameter
L	236	mm	Overall length
H3	200	mm	Outer diameter of Spigot Joint
J	184	mm	Distance between attachment bolts
A3	18	mm	Height of of Spigot Joint
A2	21	mm	Flange width
A1	25	mm	Flange width
A5	114	mm	Width including end cover
B,B1,B2	73	mm	Width of inner ring
t	4	mm	Clearance

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	113	kN	Basic dynamic load rating
C0r	77	kN	Basic static load rating

Mass

mass

14

kg

Mass approx.
