C-UKFX15D1-

Designations

C-UKFX15D1

Included products

Bearing	UKX15D1		Bearing
Housing	FX15D1		Housing

Associated products

Adapter sleeve

H2315X

Adapter sleeve

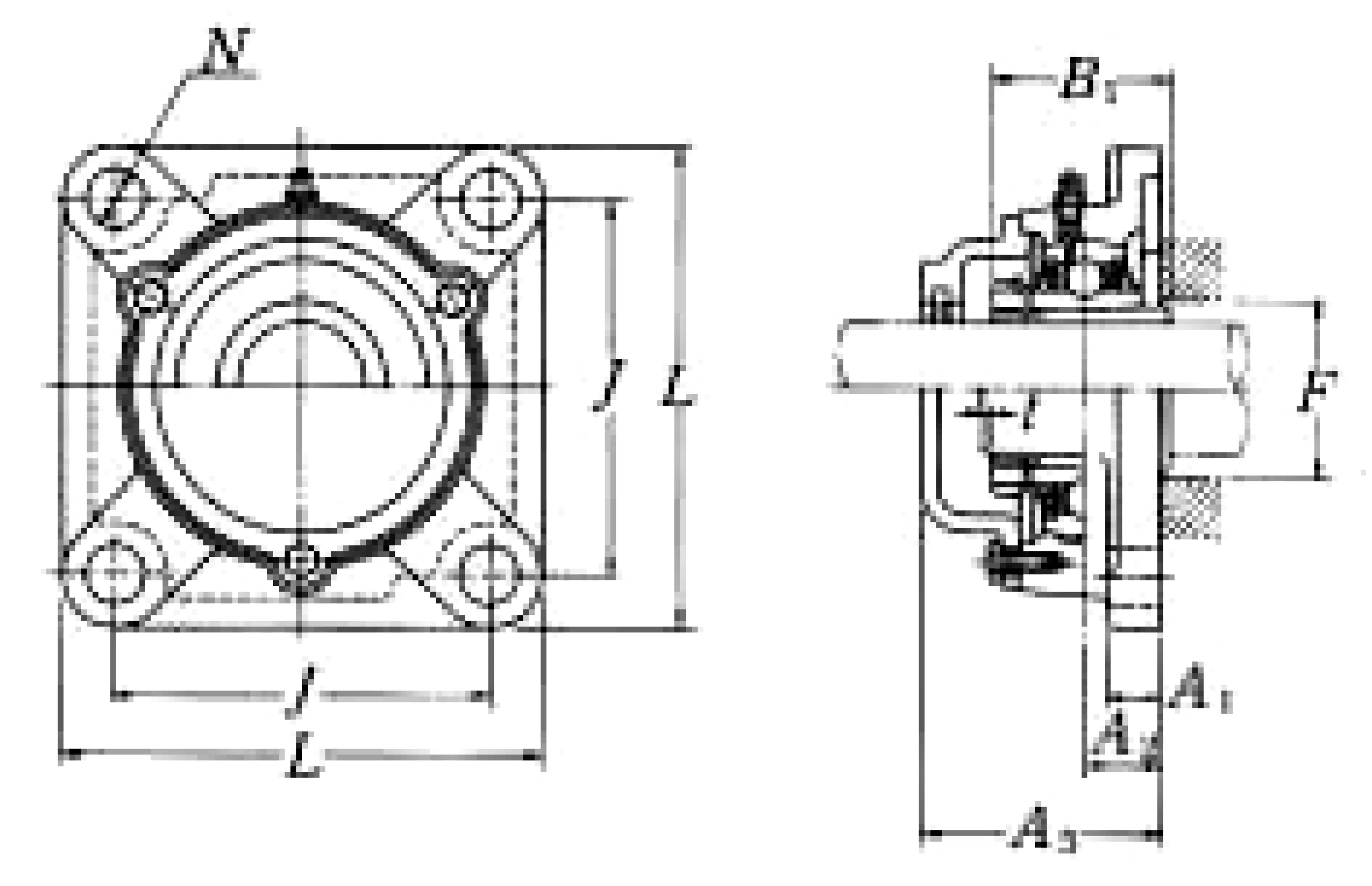

Nominal Dimensions

d	65	mm	Bore diameter
L	197	mm	Overall length
J	152	mm	Distance between attachment bolts
N	23	mm	Diameter of attachment bolt hole
A2	40	mm	Flange width
A1	24	mm	Flange width
A5	112	mm	Width including end cover
A0	77.5	mm	Overall width
B,B1,B2	73	mm	Width of inner ring
t	4	mm	Clearance

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	72.5	kN	Basic dynamic load rating
C0r	53	kN	Basic static load rating

Mass

mass

10

kg

Mass approx.
