CM-UCF213D1-

Designations

CM-UCF213D1

Included products

Bearing	UC213D1		Bearing
Housing	F213D1		Housing

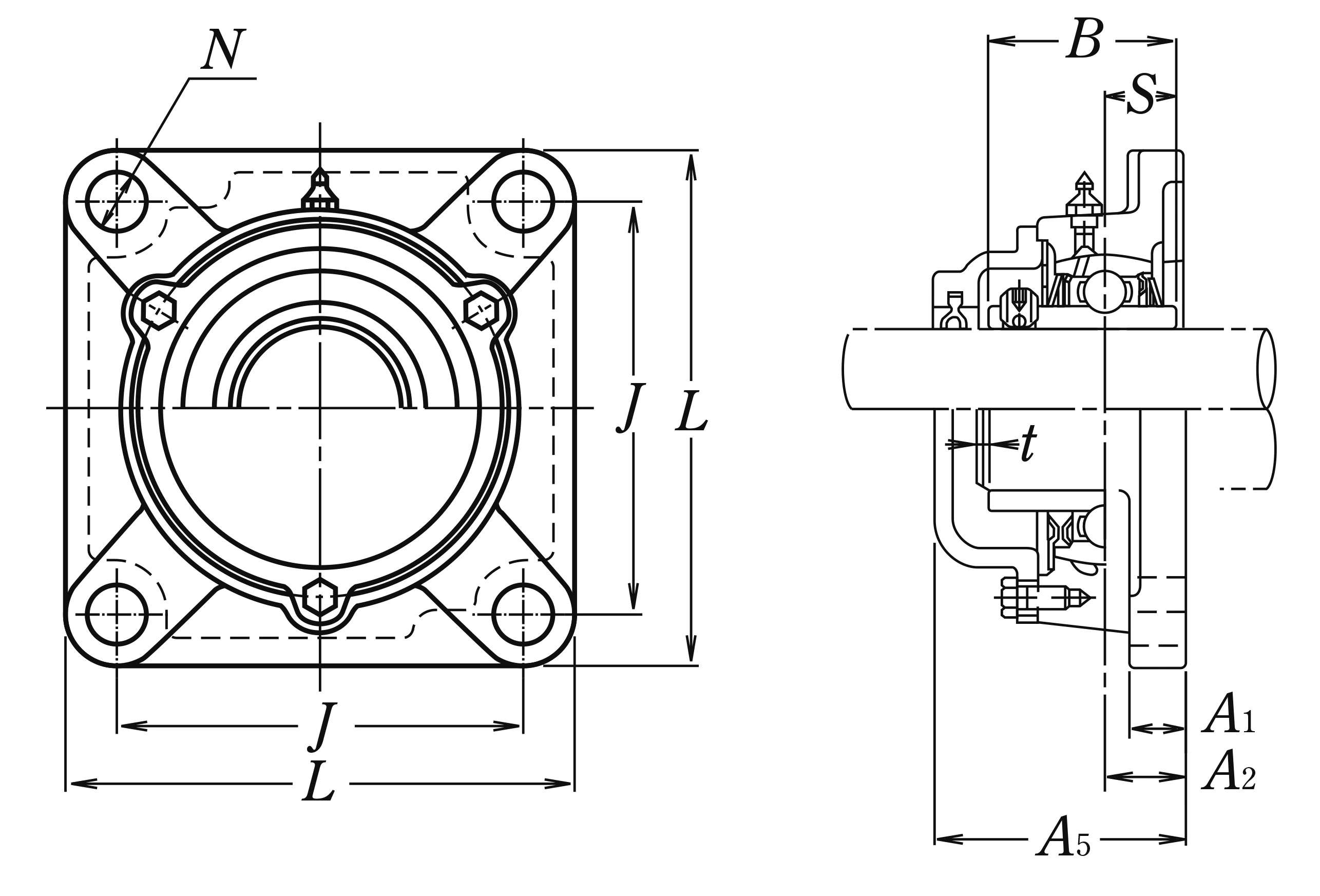

Nominal Dimensions

d	65	mm	Bore diameter
L	187	mm	Overall length
J	149	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A2	30	mm	Flange width
A1	22	mm	Flange width
A5	90	mm	Width including end cover
A0	69.7	mm	Overall width
B,B1,B2	65.1	mm	Width of inner ring
t	4	mm	Clearance
S	25.4	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	57.5	kN	Basic dynamic load rating
C0r	40	kN	Basic static load rating

Mass

mass

6.4

kg

Mass approx.
