C-UKFS312D1-

Designations

C-UKFS312D1

Included products

Bearing	UK312D1		Bearing
Housing	FS312D1		Housing

Associated products

Adapter sleeve

H2312X

Adapter sleeve

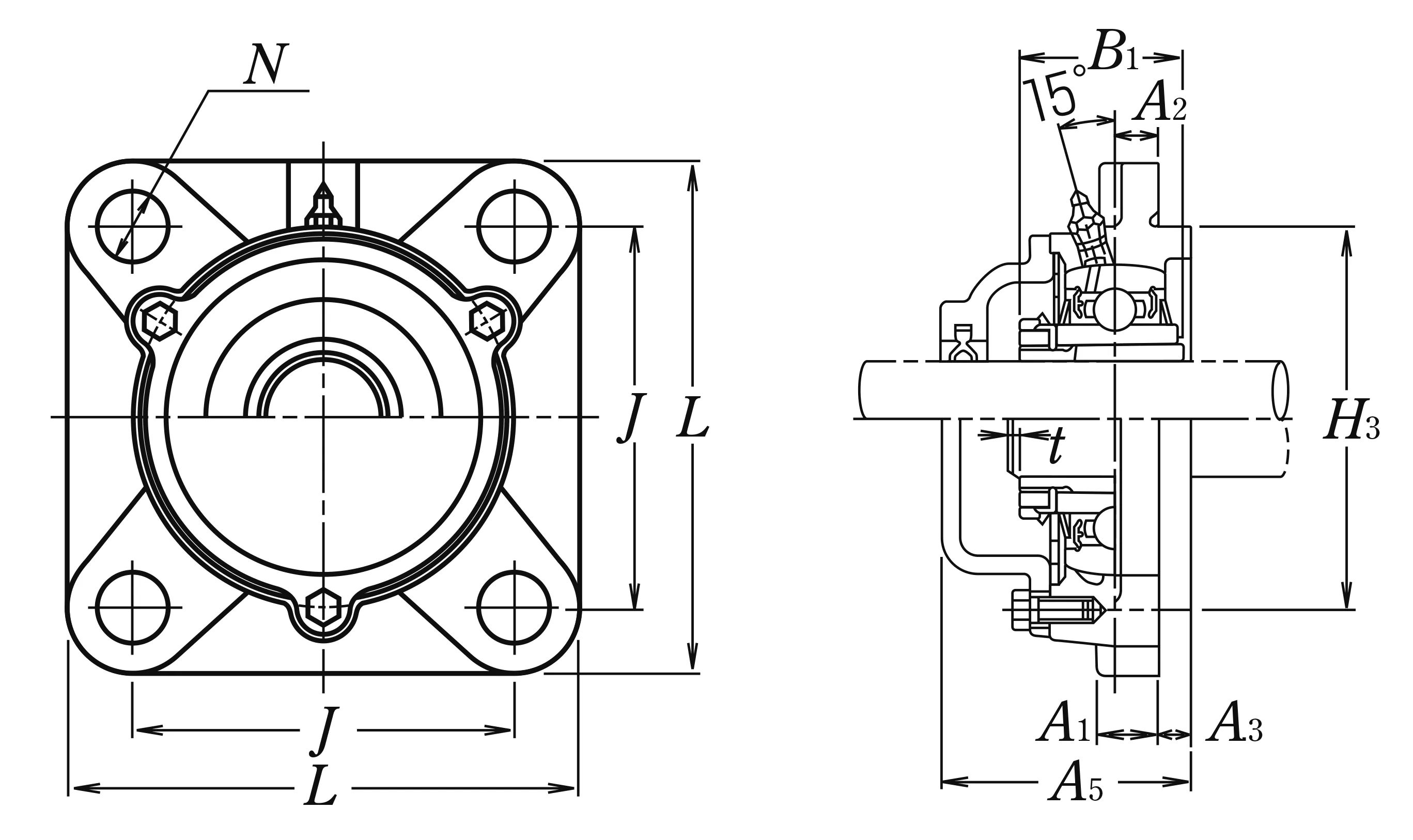

Nominal Dimensions

d	55	mm	Bore diameter
L	195	mm	Overall length
H3	160	mm	Outer diameter of Spigot Joint
J	150	mm	Distance between attachment bolts
A3	14	mm	Height of of Spigot Joint
A2	19	mm	Flange width
A1	22	mm	Flange width
A5	100	mm	Width including end cover
B,B1,B2	62	mm	Width of inner ring
t	4	mm	Clearance

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	82	kN	Basic dynamic load rating
C0r	52	kN	Basic static load rating

Mass

mass

8.4

kg

Mass approx.
