UKF312D1-

Designations

UKF312D1

Included products

Bearing	UK312D1		Bearing
Housing	F312D1		Housing

Associated products

Adapter sleeve

H2312X

Adapter sleeve

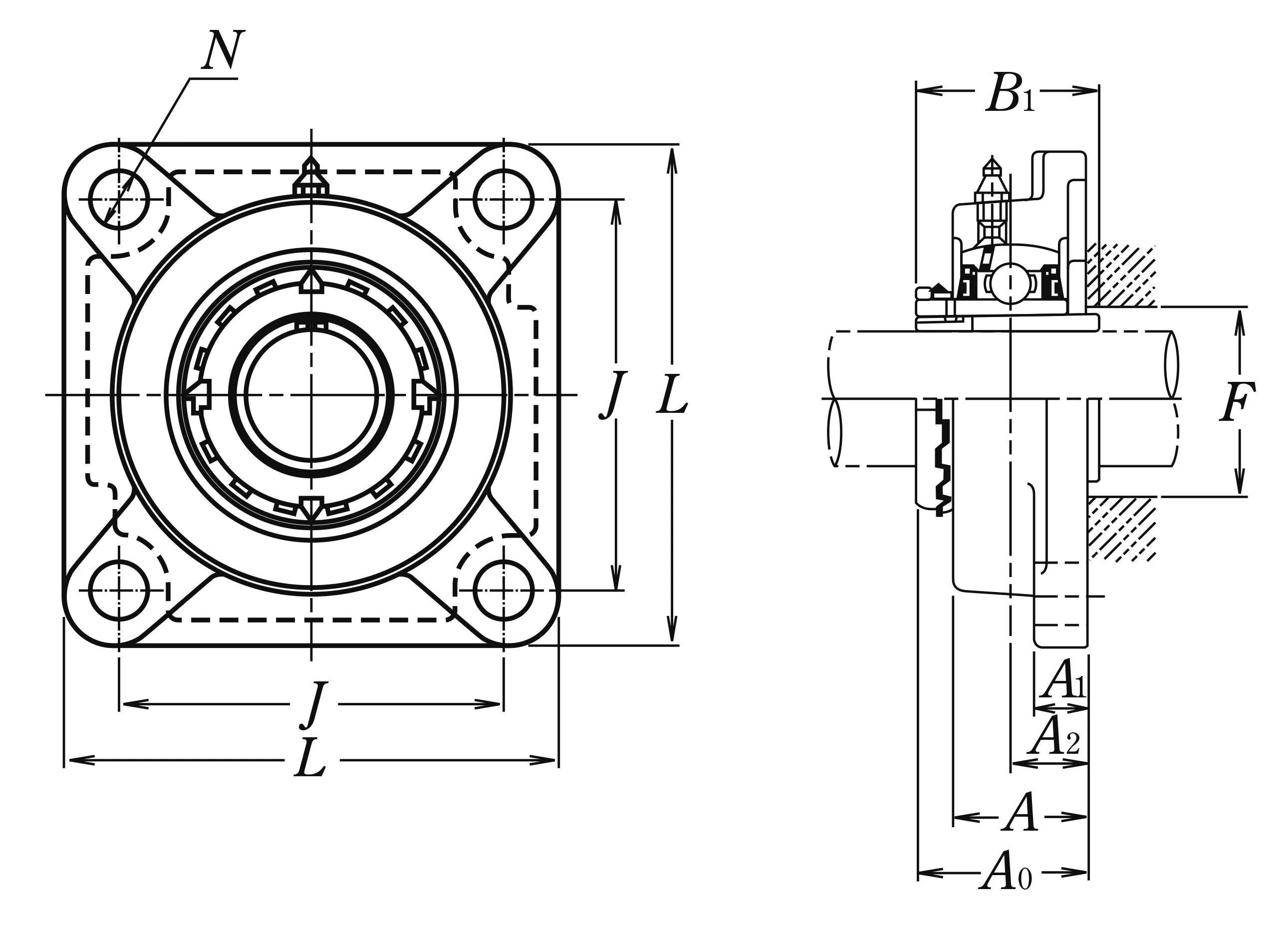

Nominal Dimensions

d	55	mm	Bore diameter
L	195	mm	Overall length
J	150	mm	Distance between attachment bolts
N	23	mm	Diameter of attachment bolt hole
A2	33	mm	Flange width
A1	22	mm	Flange width
A	56	mm	Base width
A0	69.5	mm	Overall width
B,B1,B2	62	mm	Width of inner ring

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	82	kN	Basic dynamic load rating
C0r	52	kN	Basic static load rating

Mass

mass

6.3

kg

Mass approx.
