CM-UCFS311D1-

Designations

CM-UCFS311D1

Included products

Bearing	UC311D1		Bearing
Housing	FS311D1		Housing

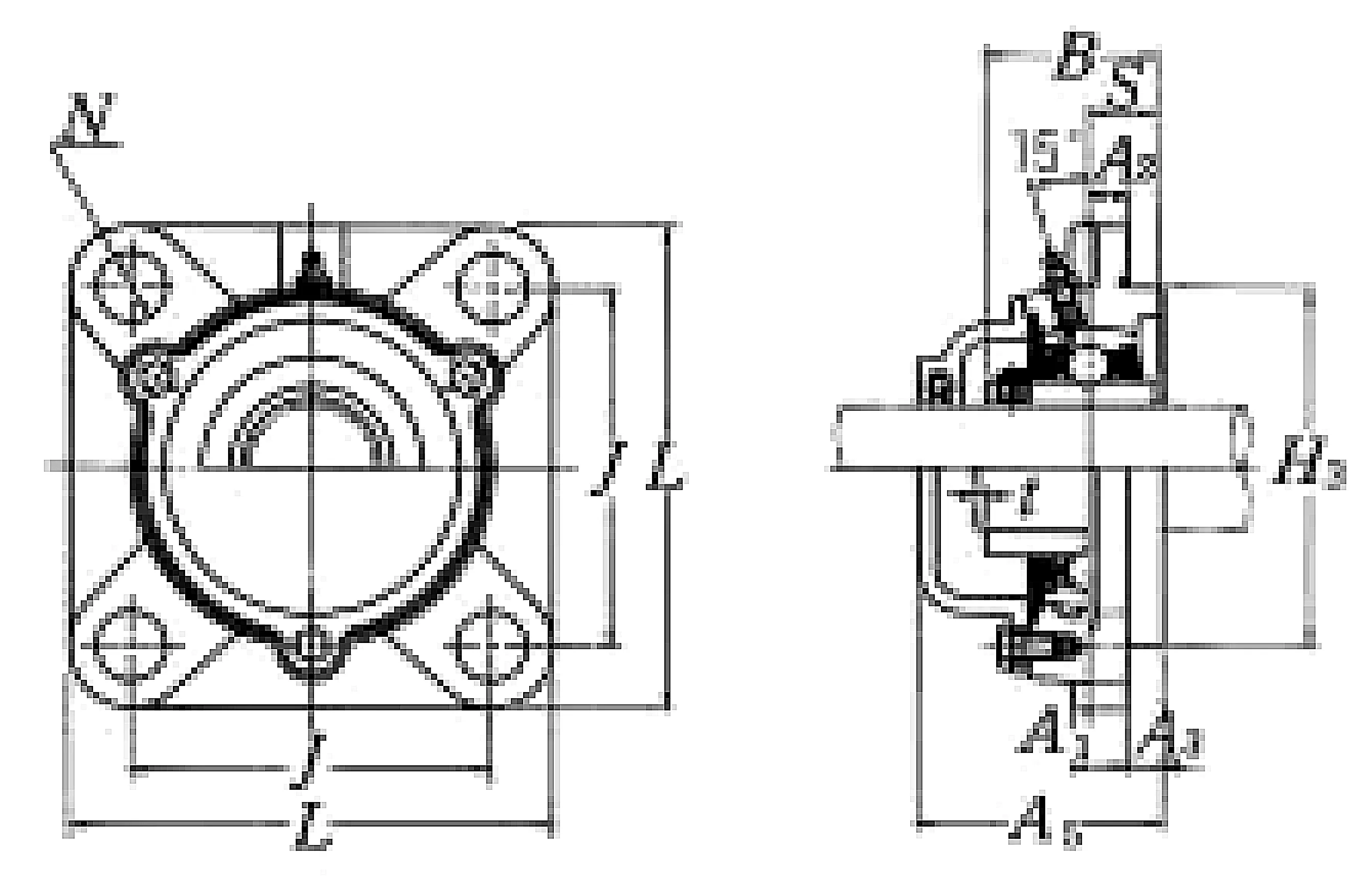

Nominal Dimensions

d	55	mm	Bore diameter
L	185	mm	Overall length
H3	150	mm	Outer diameter of Spigot Joint
J	140	mm	Distance between attachment bolts
A3	13	mm	Height of of Spigot Joint
A2	17	mm	Flange width
A1	20	mm	Flange width
A5	93	mm	Width including end cover
B,B1,B2	66	mm	Width of inner ring
t	4	mm	Clearance
S	25	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	71.5	kN	Basic dynamic load rating
C0r	45	kN	Basic static load rating

Mass

mass

7.2

kg

Mass approx.
