C-UCFX11D1-

Designations

C-UCFX11D1

Included products

Bearing	UCX11D1		Bearing
Housing	FX11D1		Housing

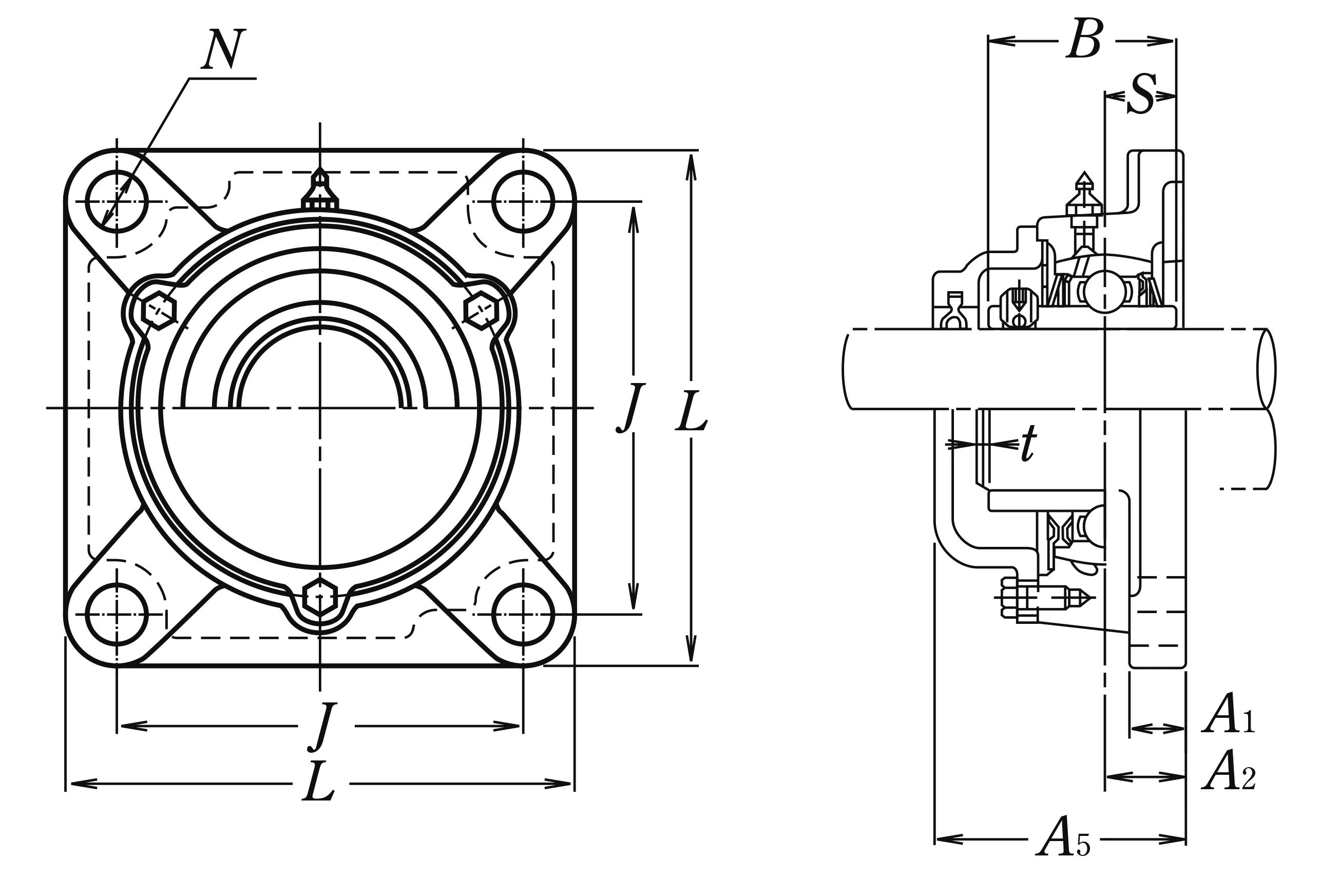

Nominal Dimensions

d	55	mm	Bore diameter
L	175	mm	Overall length
J	143	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A2	29	mm	Flange width
A1	20	mm	Flange width
A5	86	mm	Width including end cover
A0	68.7	mm	Overall width
B,B1,B2	65.1	mm	Width of inner ring
t	4	mm	Clearance
S	25.4	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	52.5	kN	Basic dynamic load rating
C0r	36	kN	Basic static load rating

Mass

mass

5.5

kg

Mass approx.
