UKF309D1-

Designations

UKF309D1

Included products

Bearing	UK309D1		Bearing
Housing	F309D1		Housing

Associated products

Adapter sleeve

H2309X

Adapter sleeve

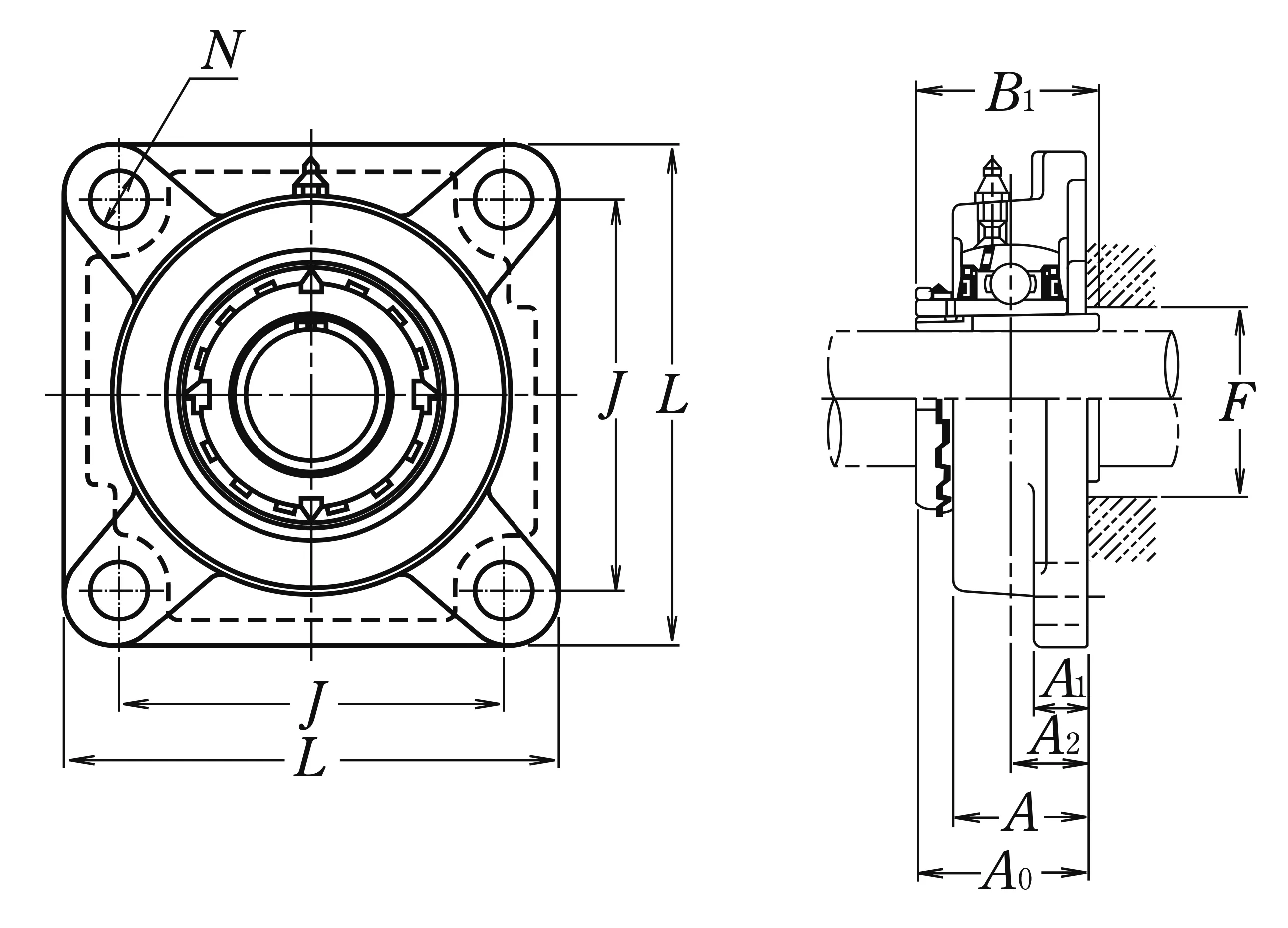

Nominal Dimensions

d	40	mm	Bore diameter
L	160	mm	Overall length
J	125	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A2	25	mm	Flange width
A1	18	mm	Flange width
A	44	mm	Base width
A0	54.5	mm	Overall width
B,B1,B2	50	mm	Width of inner ring

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	53	kN	Basic dynamic load rating
C0r	32	kN	Basic static load rating

Mass

mass

3.4

kg

Mass approx.
