C-UKFX09D1-

Designations

C-UKFX09D1

Included products

Bearing	UKX09D1		Bearing
Housing	FX09D1		Housing

Associated products

Adapter sleeve

H2309X

Adapter sleeve

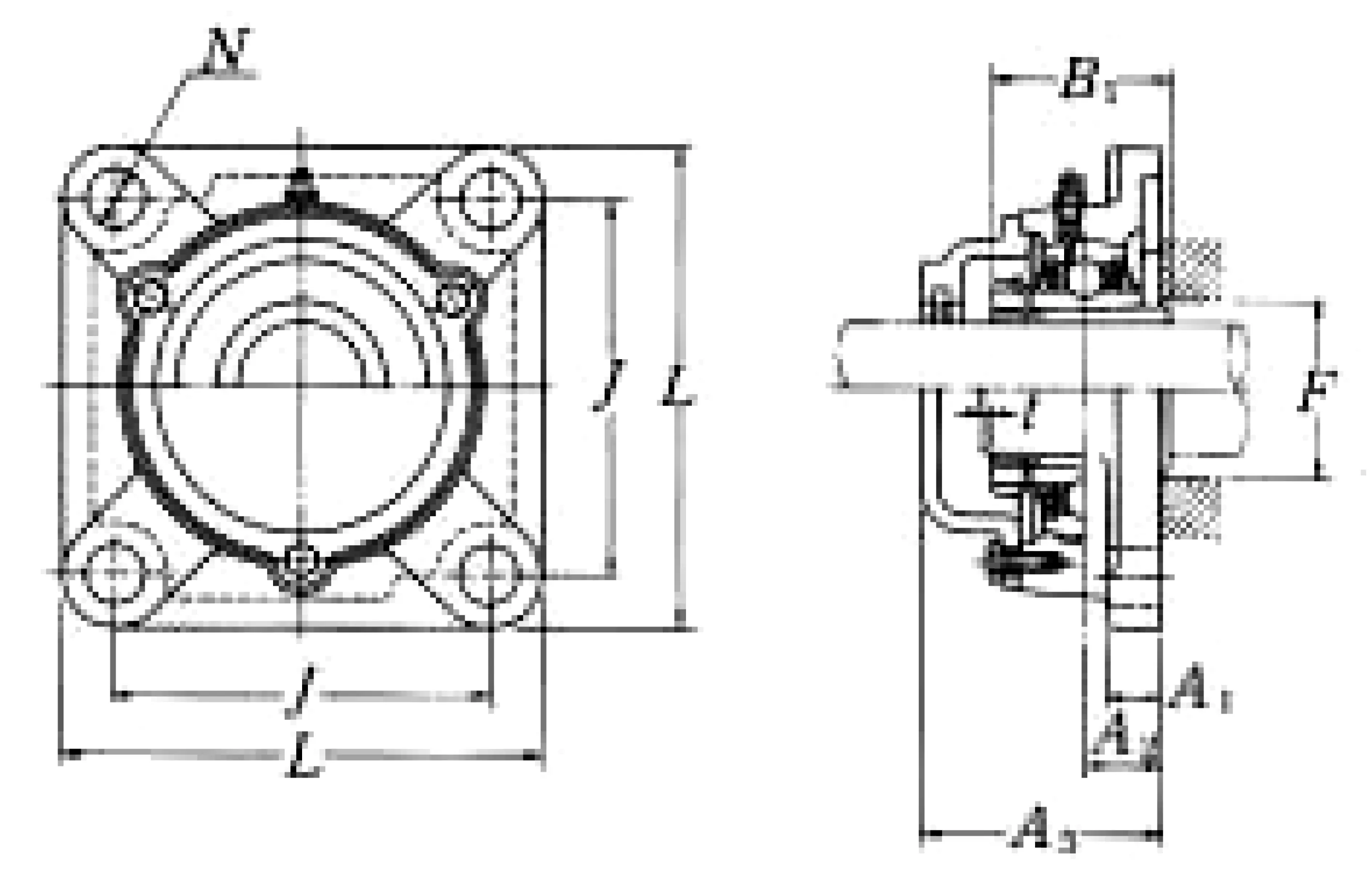

Nominal Dimensions

d	40	mm	Bore diameter
L	143	mm	Overall length
J	111	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A2	23	mm	Flange width
A1	14	mm	Flange width
A5	73	mm	Width including end cover
A0	50	mm	Overall width
B,B1,B2	50	mm	Width of inner ring
F	52	mm	Diameter of housing abutment
t	3	mm	Clearance

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	35	kN	Basic dynamic load rating
C0r	23.2	kN	Basic static load rating

Mass

mass

3

kg

Mass approx.
