ZM-UKF209D1-

Designations

ZM-UKF209D1

Included products

Bearing	UK209D1		Bearing
Housing	F209D1		Housing

Associated products

Adapter sleeve

H2309X

Adapter sleeve

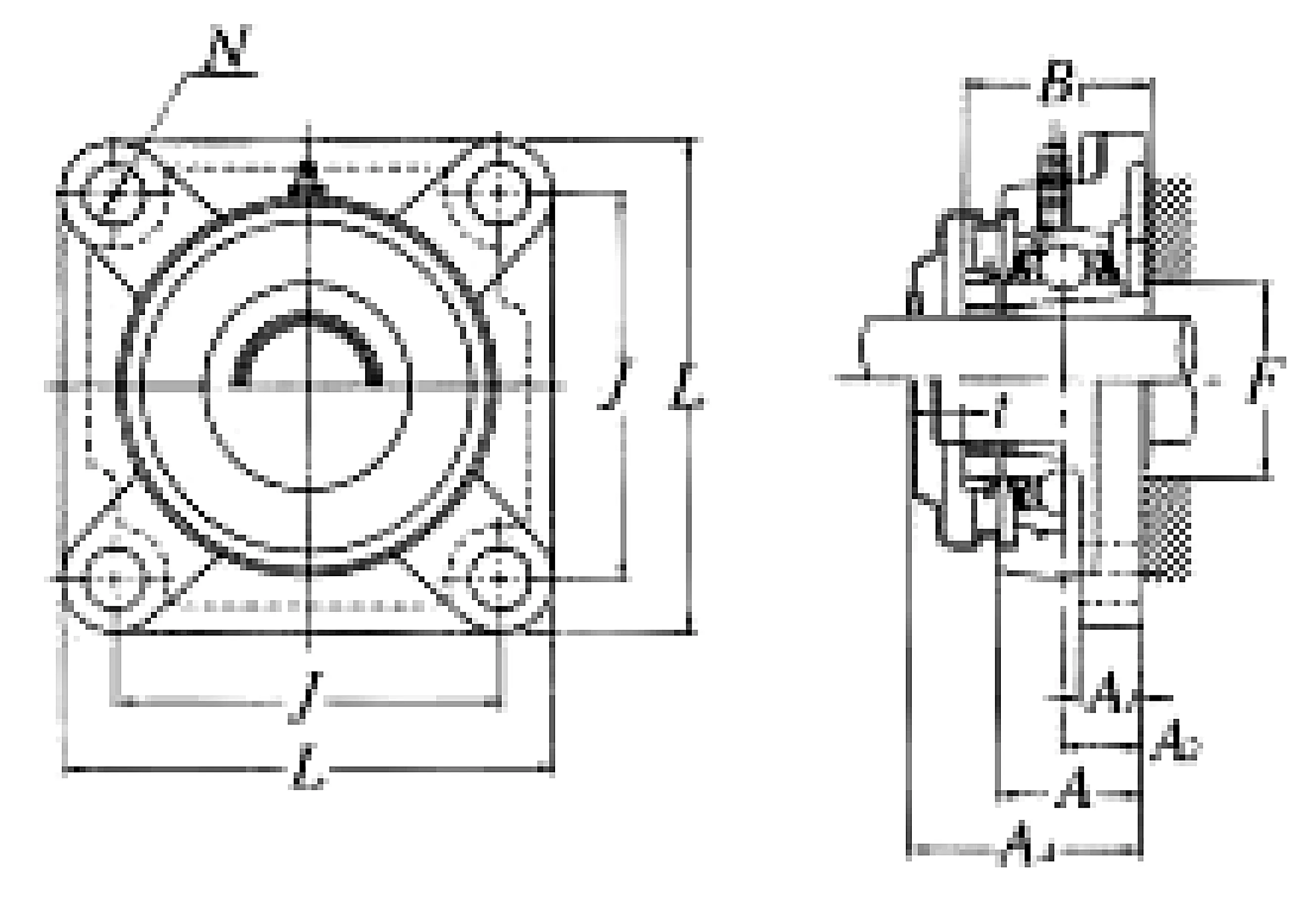

Nominal Dimensions

d	40	mm	Bore diameter
L	137	mm	Overall length
J	105	mm	Distance between attachment bolts
N	16	mm	Diameter of attachment bolt hole
A2	22	mm	Flange width
A1	16	mm	Flange width
A	38	mm	Base width
A4	57	mm	Width including end cover
A0	48.5	mm	Overall width
B,B1,B2	50	mm	Width of inner ring
F	52	mm	Diameter of housing abutment
t	3	mm	Clearance

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	32.5	kN	Basic dynamic load rating
C0r	20.4	kN	Basic static load rating

Mass

mass

2.3

kg

Mass approx.
