C-UKFS308D1-

Designations

C-UKFS308D1

Included products

Bearing	UK308D1		Bearing
Housing	FS308D1		Housing

Associated products

Adapter sleeve

H2308X

Adapter sleeve

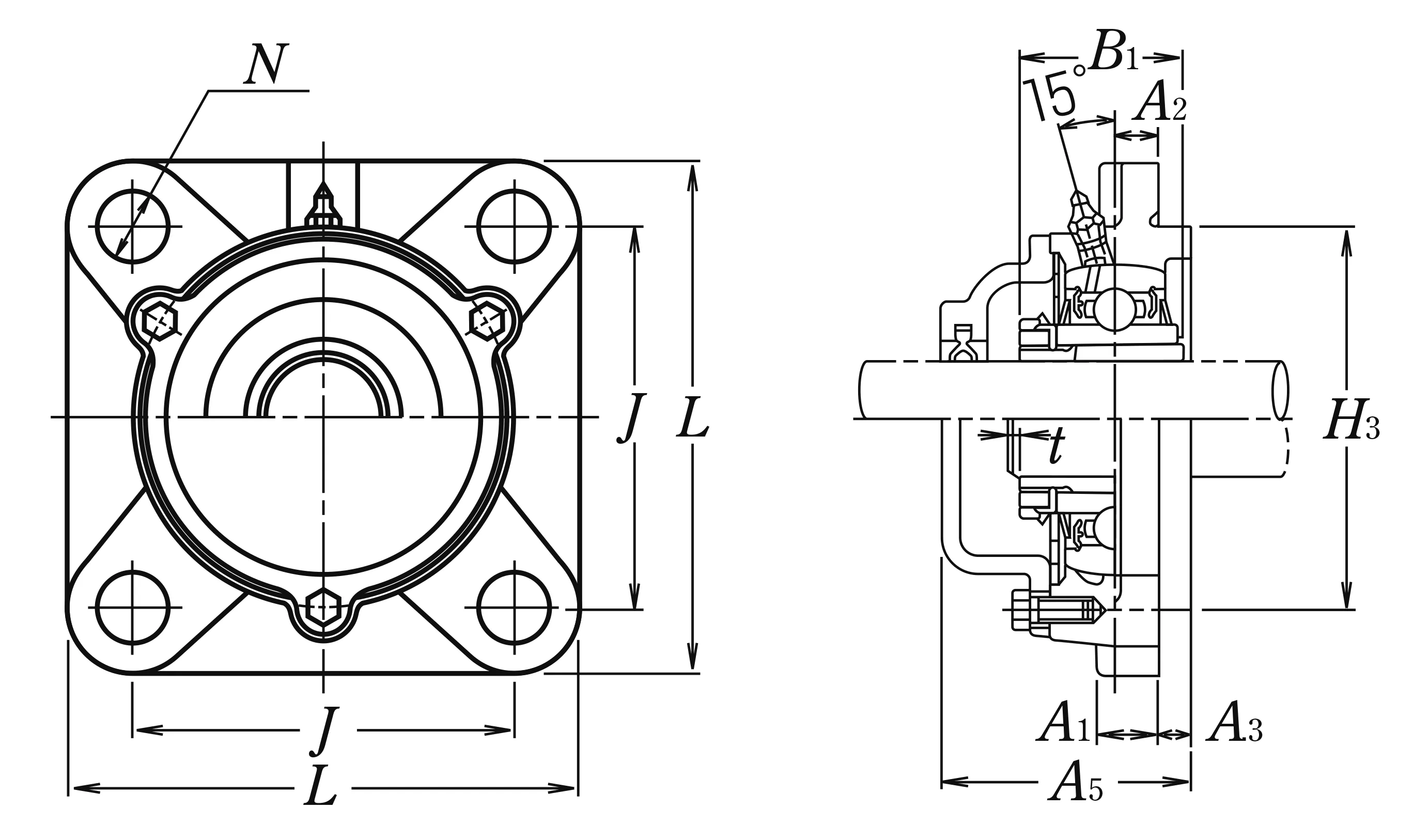

Nominal Dimensions

d	35	mm	Bore diameter
L	150	mm	Overall length
H3	115	mm	Outer diameter of Spigot Joint
J	112	mm	Distance between attachment bolts
A3	10	mm	Height of of Spigot Joint
A2	13	mm	Flange width
A1	17	mm	Flange width
A5	76	mm	Width including end cover
B,B1,B2	46	mm	Width of inner ring
t	3	mm	Clearance

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	40.5	kN	Basic dynamic load rating
C0r	24	kN	Basic static load rating

Mass

mass

3.7

kg

Mass approx.
