CM-UCFS307D1-

Designations

CM-UCFS307D1

Included products

Bearing	UC307D1		Bearing
Housing	FS307D1		Housing

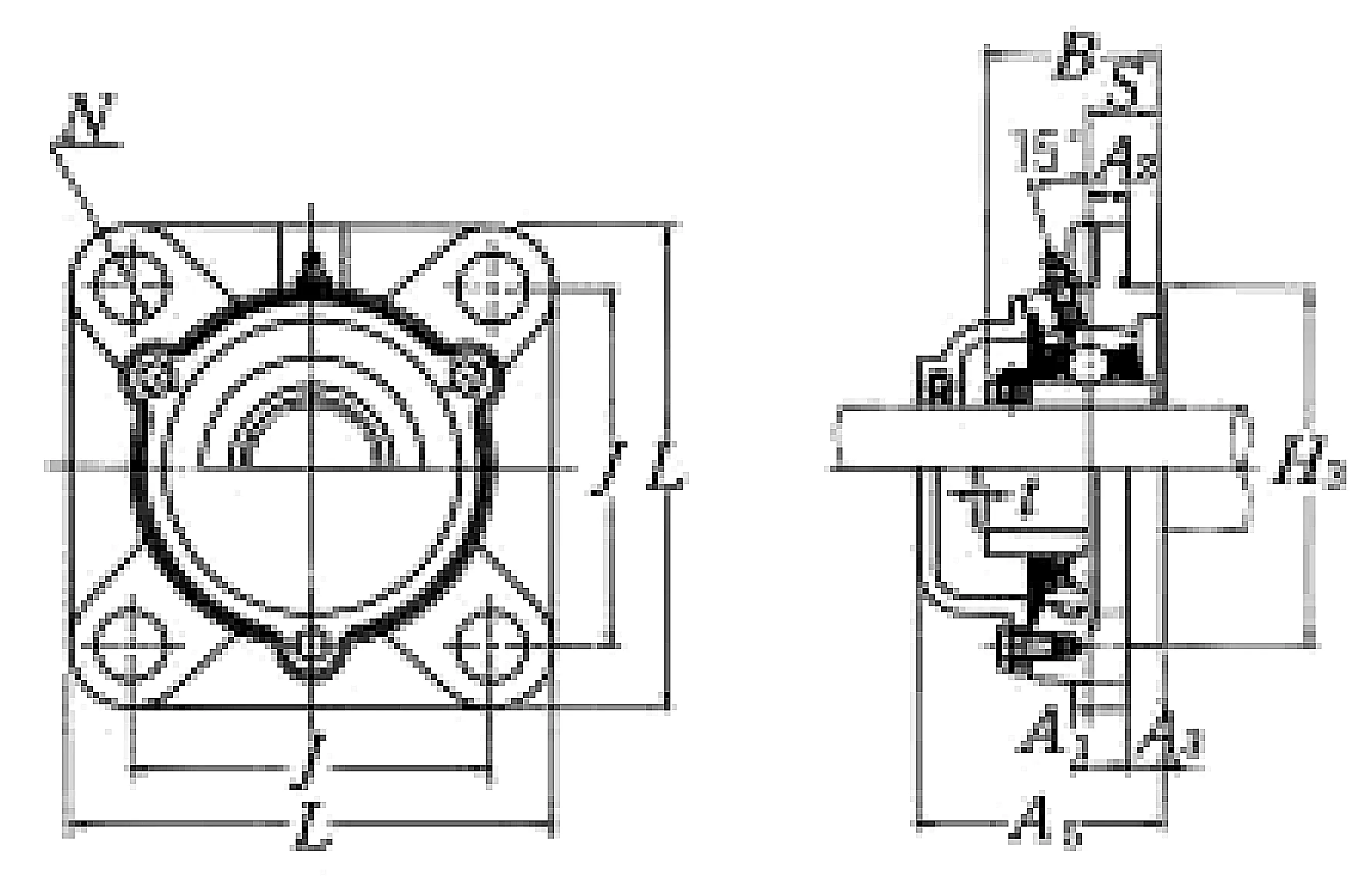

Nominal Dimensions

d	35	mm	Bore diameter
L	135	mm	Overall length
H3	100	mm	Outer diameter of Spigot Joint
J	100	mm	Distance between attachment bolts
A3	9	mm	Height of of Spigot Joint
A2	11	mm	Flange width
A1	16	mm	Flange width
A5	67	mm	Width including end cover
B,B1,B2	48	mm	Width of inner ring
t	3	mm	Clearance
S	19	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	33.5	kN	Basic dynamic load rating
C0r	19.1	kN	Basic static load rating

Mass

mass

2.8

kg

Mass approx.
