UKFS307D1-

Designations

UKFS307D1

Included products

Bearing	UK307D1		Bearing
Housing	FS307D1		Housing

Associated products

Adapter sleeve

H2307X

Adapter sleeve

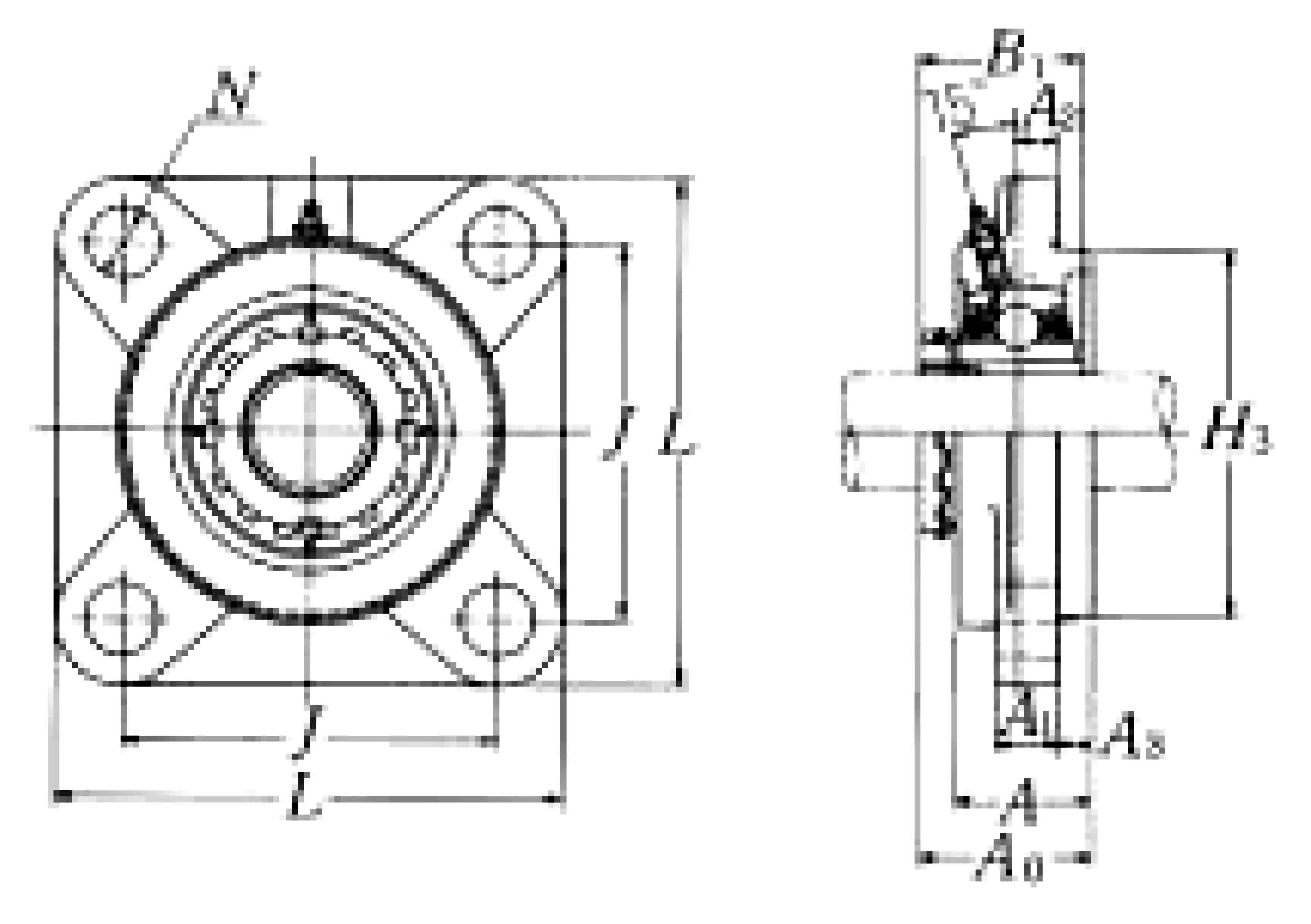

Nominal Dimensions

d	30	mm	Bore diameter
L	135	mm	Overall length
H3	100	mm	Outer diameter of Spigot Joint
J	100	mm	Distance between attachment bolts
A3	9	mm	Height of of Spigot Joint
A2	11	mm	Flange width
A1	16	mm	Flange width
A	36	mm	Base width
A0	45.5	mm	Overall width
B,B1,B2	43	mm	Width of inner ring

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	33.5	kN	Basic dynamic load rating
C0r	19.1	kN	Basic static load rating

Mass

mass

2.3

kg

Mass approx.
