UCFS306D1-

Designations

UCFS306D1

Included products

Bearing	UC306D1		Bearing
Housing	FS306D1		Housing

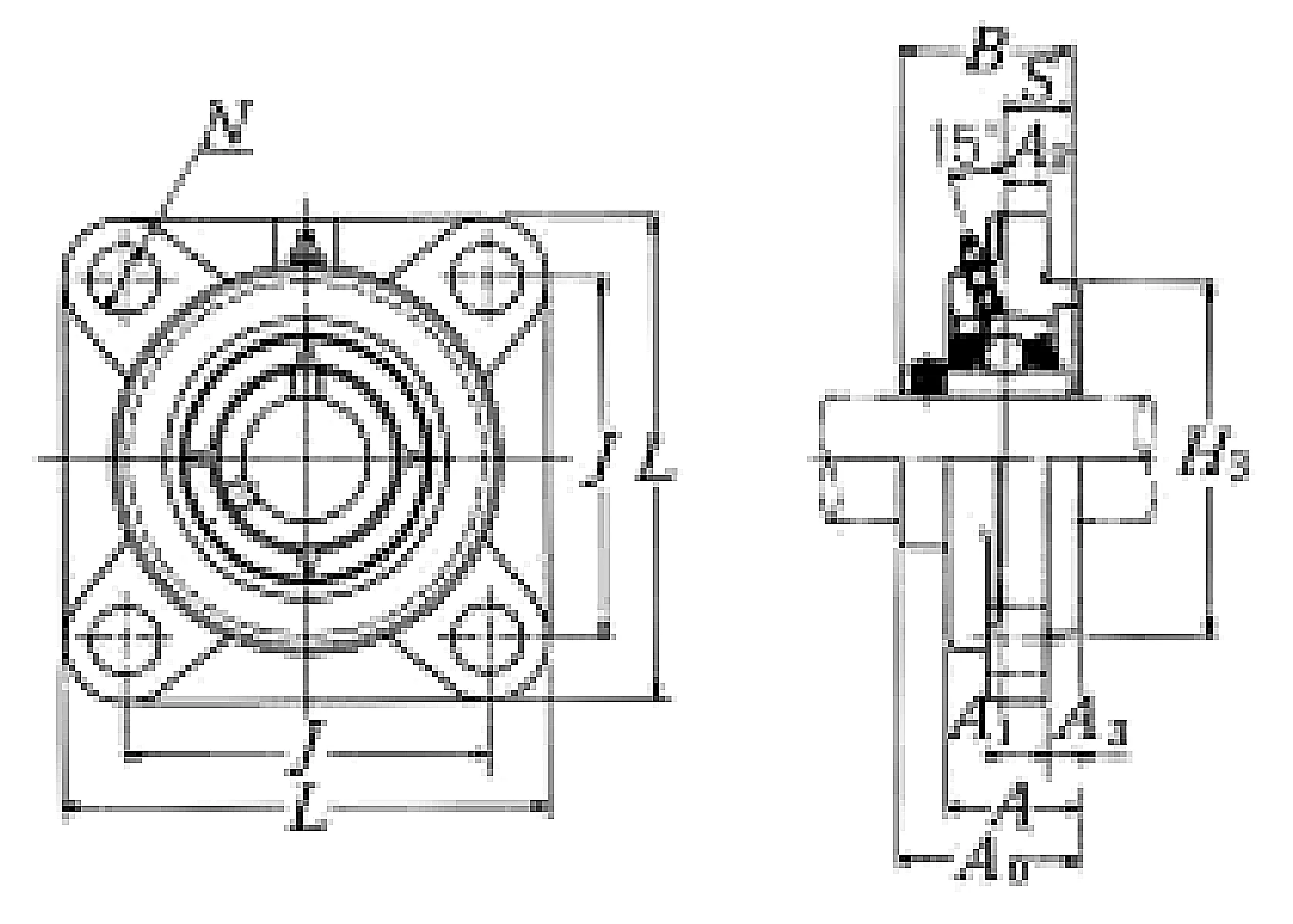

Nominal Dimensions

d	30	mm	Bore diameter
L	125	mm	Overall length
H3	90	mm	Outer diameter of Spigot Joint
J	95	mm	Distance between attachment bolts
A3	8	mm	Height of of Spigot Joint
A2	10	mm	Flange width
A1	15	mm	Flange width
A	32	mm	Base width
A0	44	mm	Overall width
B,B1,B2	43	mm	Width of inner ring
S	17	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	26.7	kN	Basic dynamic load rating
C0r	15	kN	Basic static load rating

Mass

mass

1.8

kg

Mass approx.
