ZM-UKF207D1-

Designations

ZM-UKF207D1

Included products

Bearing	UK207D1		Bearing
Housing	F207D1		Housing

Associated products

Adapter sleeve

H2307X

Adapter sleeve

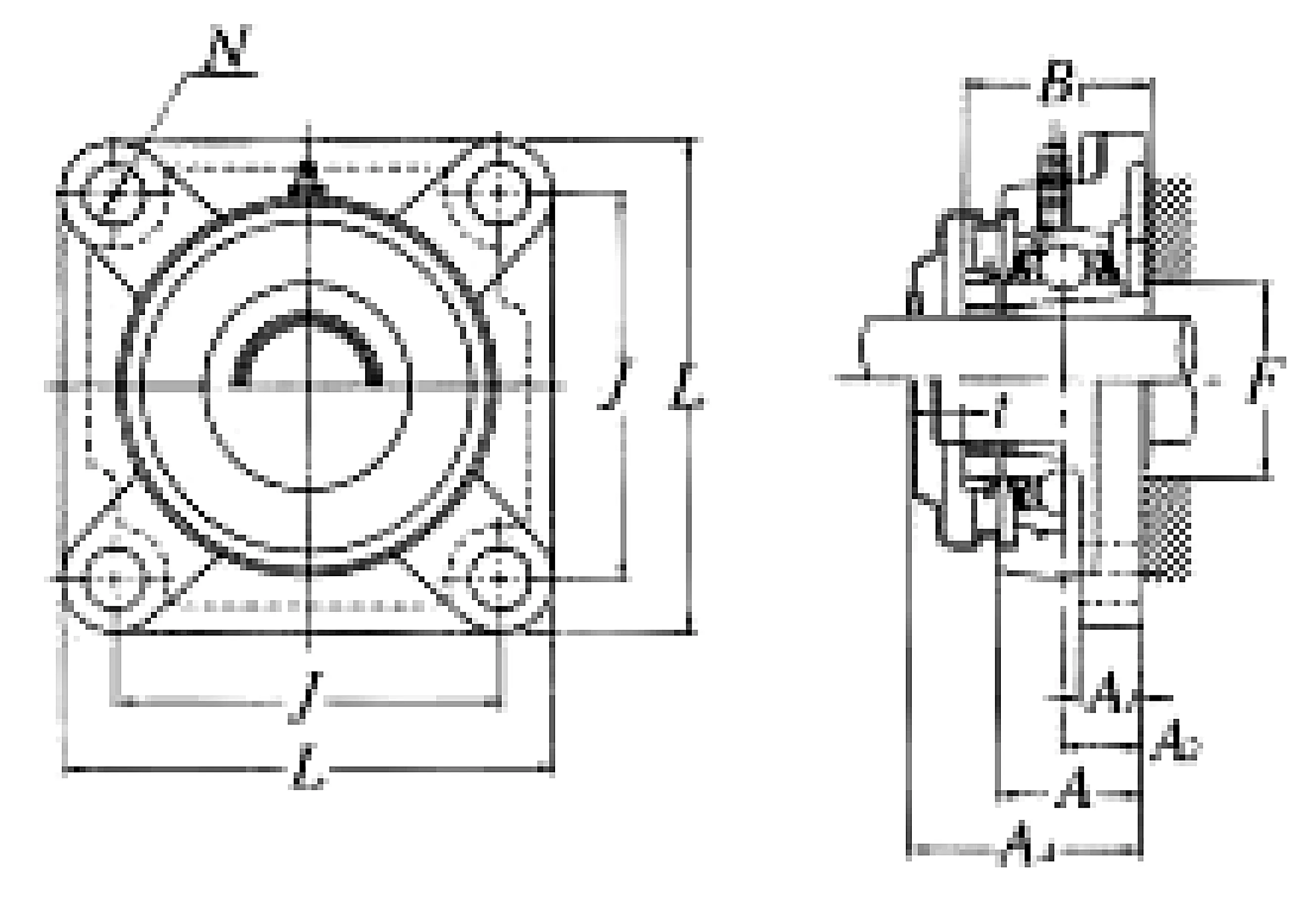

Nominal Dimensions

d	30	mm	Bore diameter
L	117	mm	Overall length
J	92	mm	Distance between attachment bolts
N	14	mm	Diameter of attachment bolt hole
A2	19	mm	Flange width
A1	15	mm	Flange width
A	34	mm	Base width
A4	49	mm	Width including end cover
A0	42.5	mm	Overall width
B,B1,B2	43	mm	Width of inner ring
F	40	mm	Diameter of housing abutment
t	3	mm	Clearance

Mounting information

G

M12

Bolt size

Basic Load Ratings

Cr	25.7	kN	Basic dynamic load rating
C0r	15.3	kN	Basic static load rating

Mass

mass

1.6

kg

Mass approx.
