UELFU206D1-

Designations

UELFU206D1

Included products

Bearing	UEL206D1		Bearing
Housing	FU206D1		Housing

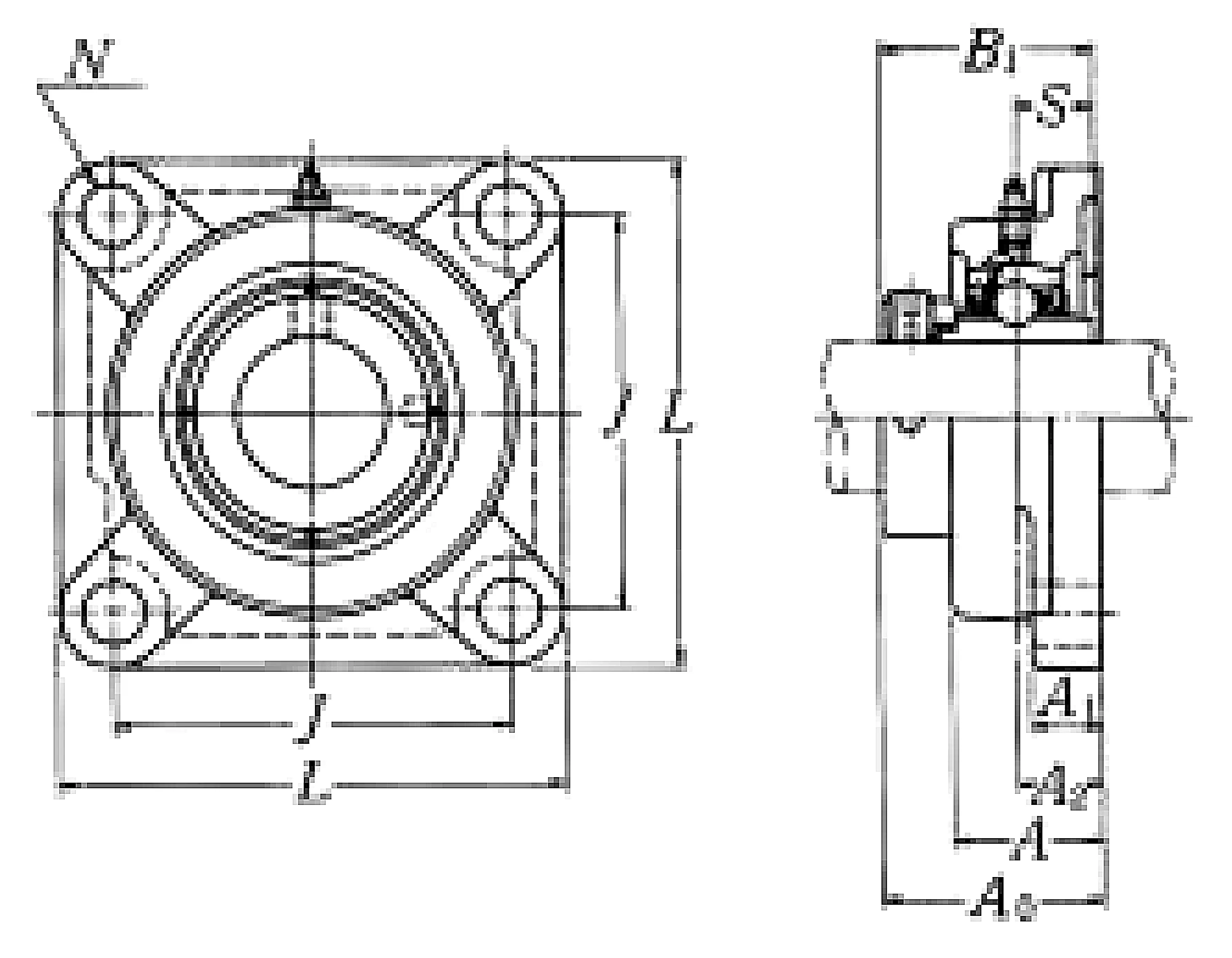

Nominal Dimensions

d	30	mm	Bore diameter
L	109	mm	Overall length
J	82.5	mm	Distance between attachment bolts
N	11.5	mm	Diameter of attachment bolt hole
A2	20	mm	Flange width
A1	16	mm	Flange width
A	33	mm	Base width
A0	50.1	mm	Overall width
B,B1,B2	48.4	mm	Width of inner ring
S	18.25	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

1.4

kg

Mass approx.
